Aircraft Hydraulic Maintenance: A System-to-Connection Approach

Aircraft service support is effective when every maintenance decision follows the same evidence chain: the reported condition, the affected aircraft function, the approved maintenance data, the corrective action, and the verification that follows. A hydraulic stain, damaged line, contaminated sample, or worn seal is not an isolated detail. It belongs to an installed system whose condition must be evaluated in the context of the aircraft design.

That system-level view is especially important around hydraulic connections. Fittings are small compared with pumps, reservoirs, and actuators, but they define serviceable joints throughout the pressure and return paths. Correct maintenance therefore connects airframe condition, fluid cleanliness, component inspection, connection identity, and return-to-service documentation.

Start with Structure and Installation Context

Aircraft hydraulic lines do not operate independently of the structure around them. Tubing, hose, fittings, clamps, and components are routed through an airframe that is exposed to vibration, loading cycles, moisture, temperature changes, and maintenance access. Accidental damage, environmental deterioration, or fatigue in the surrounding installation can alter support, clearance, or alignment even when the hydraulic component itself initially appears intact.

The applicable aircraft maintenance data determines the inspection area and acceptable condition. A useful review follows the complete local installation rather than stopping at the first visible trace of fluid. Maintenance personnel may need to consider the line, its supports, adjacent structure, connected component, and evidence of movement or contact. The purpose is not to assume that structural and hydraulic findings share one cause, but to avoid treating either finding without its installation context.

Read a Discrepancy through System Function

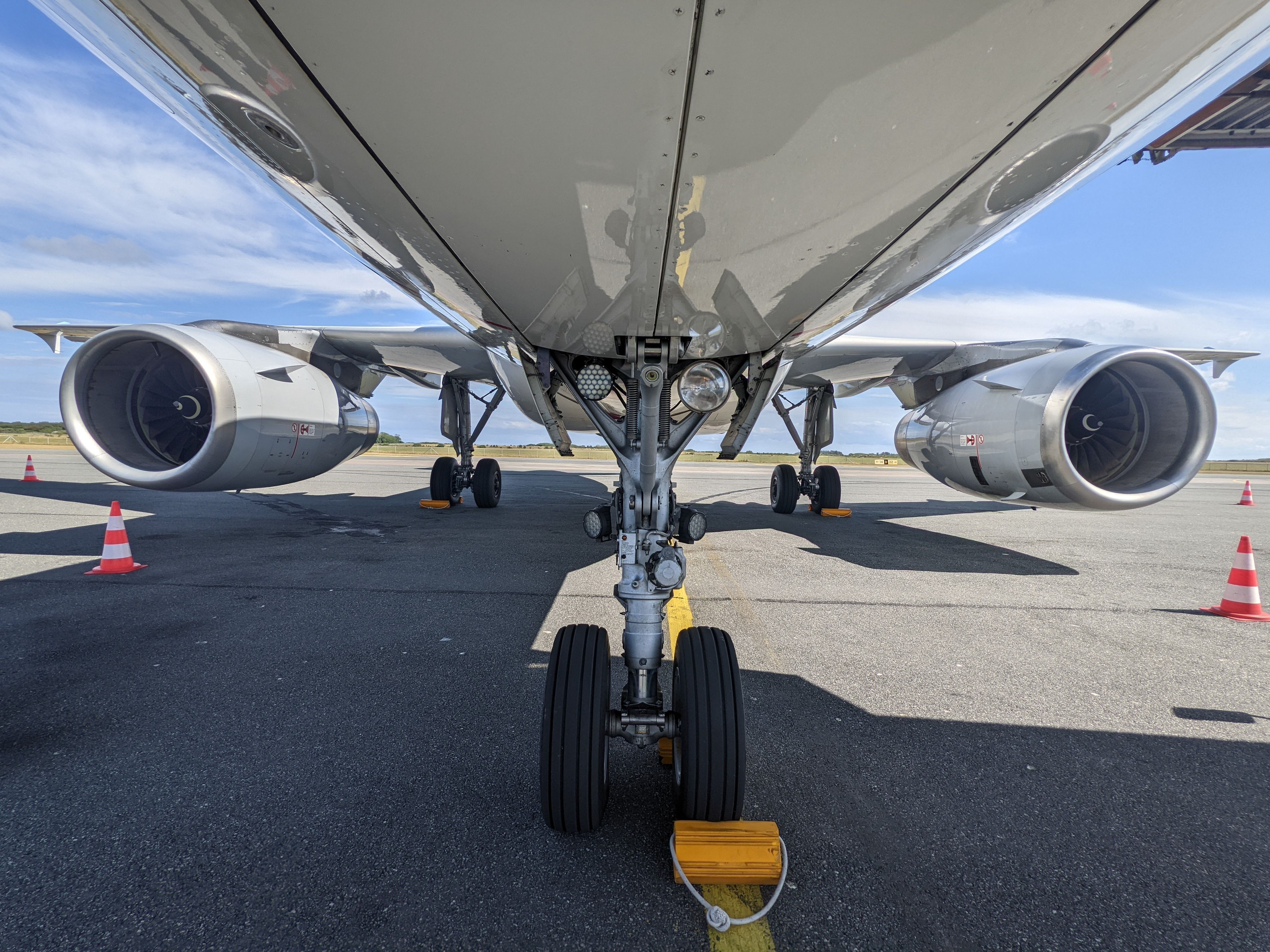

Hydraulic systems may support landing gear, brakes, flight-control surfaces, flaps, steering, doors, or other functions, depending on the aircraft. The system architecture and level of redundancy also vary. A leak near one component does not by itself explain the origin of the condition or its effect on the wider circuit.

Troubleshooting should begin with the approved schematic and maintenance instructions for that aircraft. Those documents establish the relevant reservoir, pump, filter, valve, accumulator, conductor, and actuator relationships. They also define the inspections and functional checks required after maintenance. Redundancy can preserve a function after some failures, but it does not make an unexplained leak, pressure loss, or damaged connection acceptable.

Routine service may include fluid-level checks, filter attention, reservoir work, fluid sampling, or other aircraft-specific tasks. The correct interval and method come from the operator's maintenance program and approved data, not from a universal checklist. Trend information can help distinguish a recurring condition from a one-time observation, but it still has to be interpreted for the installed system.

Keep Service Work from Adding Contamination

Hydraulic contamination can originate in normal component wear, enter past external seals, or be introduced when a system is opened. Particles, incompatible fluid, water, and maintenance debris can affect valves, pumps, seals, and other close-tolerance components. Cleanliness is therefore part of the repair, not a separate housekeeping task.

Before opening a line, the work area, tools, servicing equipment, fluid source, and provisions for protecting disconnected ends should follow the applicable maintenance instructions. Fluid and filter choices must match the aircraft specification. A clean-looking container or a familiar color is not a substitute for positive identification and controlled handling.

If inspection or analysis indicates contamination, the response must address the affected system and the source of entry. Replacing a filter without understanding why contamination appeared can leave the underlying condition unresolved. Any flushing, sampling, component replacement, purging, or leak check belongs to the aircraft-specific procedure and should be performed by qualified personnel.

Treat Every Fitting as a Defined Interface

Connection appearance can be misleading. A 37-degree flared joint, an O-ring face seal, and an O-ring boss port use different sealing interfaces even when nearby thread dimensions seem similar. Threads may retain or position parts while the actual seal occurs at a flare, face, or O-ring. Substituting a part because it threads into place can create an incorrect or unapproved joint.

Inspection should consider the complete connection: fitting identity, mating geometry, tube or hose condition, sealing surface, O-ring or other seal, alignment, support, and evidence of damage or leakage. Tightening also belongs to a defined joint condition. The approved value and method account for the intended connection, material, finish, lubrication state, and installation instructions; more torque is not a general solution for a leak.

For background on these connection families, HGW's article on flared and flareless aircraft tube fittings explains how the sealing interfaces differ. That information is educational context only. The aircraft maintenance manual, illustrated parts data, and other approved records control the identity and acceptability of an installed replacement.

Close the Maintenance Record with Verification

Aircraft service support is not complete when a component has merely been removed and replaced. The final record should connect the original discrepancy to the inspection findings, corrective action, required functional checks, and release decision. This makes recurring leakage, contamination, wear, or installation damage easier to recognize across later maintenance events.

Verification must reflect the function that was disturbed. Depending on the approved instructions, that may involve checking system operation, inspecting for leakage under specified conditions, confirming fluid quantity, or documenting test results. The responsible maintenance organization determines airworthiness and return to service under the applicable requirements.

HGW can help industrial and ground-support-equipment teams compare general hydraulic fitting geometry, threads, sealing methods, and dimensions through its technical resources. Aircraft-installed parts remain subject to the aircraft's approved data and authorized maintenance process; a general catalog match or cross-reference is not an aviation approval.
