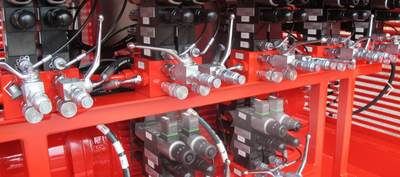

Redundant Hydraulic System Design for Maintainability and Safer Operation

Maintainable hydraulic design begins before the first hose, valve, filter, or fitting is installed. Component placement, fluid selection, filtration access, and service routing all affect safety, uptime, and long-term system life.

A system that is hard to inspect or repair can turn routine maintenance into extended downtime. Good design makes critical components accessible and reduces avoidable risk.

Design for Access and Service Life

Hydraulic systems should be laid out so filters, hose connections, valves, and wear items can be reached safely. Lines that see frequent activation, vibration, or changeover need extra attention during routing and support.

Fluid selection also matters. Mineral oils, synthetic fluids, and semi-synthetic coolants can have different compatibility requirements, temperature behavior, and maintenance needs.

Using Design Tools Before Assembly

3D-CAD and solid modeling can help designers see whether a component can be accessed, whether a hose has room to move, and whether a filter can be replaced without removing unrelated parts.

Finding these issues before fabrication is usually cheaper than correcting them after the machine is in service.

What Redundancy Does

Redundant hydraulic systems use more than one hydraulic subsystem, more than one pressure source, or multiple actuators to keep essential functions available if one part of the system fails.

Aircraft are a familiar example because flight controls, flaps, landing gear, and brakes depend on fluid power. Multiple independent hydraulic systems can let a machine maintain control after a single circuit loses fluid.

Multiple Systems and Multiple Pressure Sources

One redundancy method is to use separate hydraulic systems that power the same critical function through independent actuators. Another is to use more than one pump or pressure source in the same system, such as engine-driven pumps with electric backup pumps.

Redundancy does not remove the need for correct installation and maintenance. Improperly installed check valves, poor routing, or wrong parts can still defeat the design and cause serious failure.
