HGW HYDRAULICS

0304-06

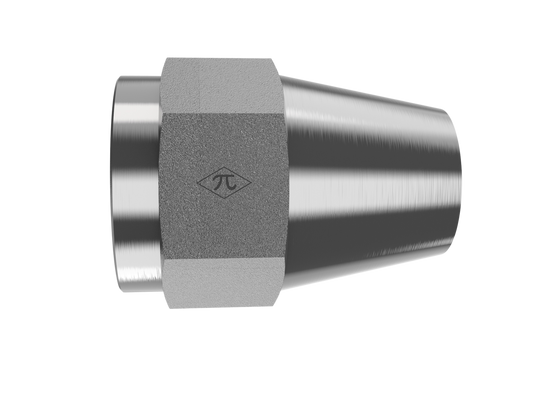

3/8" JIC 37° Tube Nut · Long Tube Nut

The HGW 0304-06 is a long tube nut for 3/8" JIC 37° tube nut applications. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Long Tube Nut
$1.51
(0) Write a Review
SKU:
0304-06

Product Details

Connection A
TypeJIC 37° Tube Nut
Tube Size3/8"
StandardSAE J514
Thread9/16-18
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeLong Tube Nut
Weight0.05 lb
Cross References
Aeroquip221000-6S
SAE Ref.SAE J514 6 070111C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
