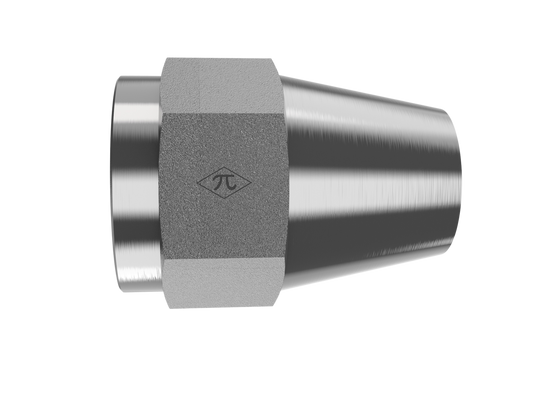

HGW 0304 shared series image [a422a853ba12]

HGW HYDRAULICS

0304-12

3/4" JIC 37° Tube Nut · Long Tube Nut

The HGW 0304-12 is a long tube nut for 3/4" JIC 37° tube nut applications. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Long Tube Nut
$6.96
(0) Write a Review
SKU:
0304-12

Product Details

Connection A
TypeJIC 37° Tube Nut
Tube Size3/4"
StandardSAE J514
Thread1-1/16-12
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeLong Tube Nut
Weight0.24 lb
Cross References
Aeroquip221000-12S
SAE Ref.SAE J514 12 070111C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
