HGW HYDRAULICS

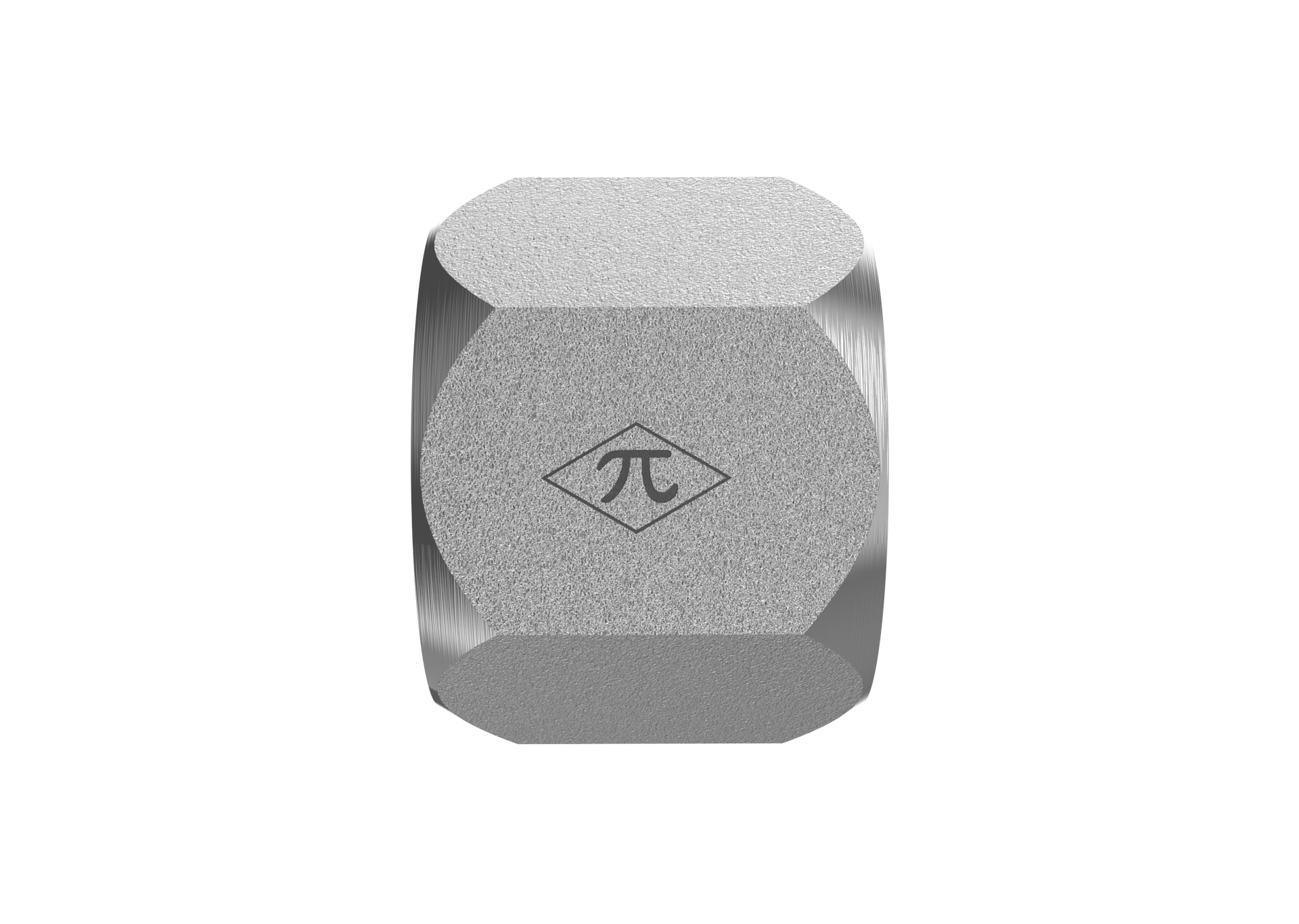

0304-C-03

3/16" Female JIC

0304-C-03 is a 3/16" Female JIC in the 0304-C Series. For sealing off male 37° flare ends.

  • Steel
  • Trivalent Zinc
  • Cap
$1.87
(0) Write a Review
SKU:
0304-C-03

Product Details

Connection A
TypeFemale JIC
Tube OD3/16"
StandardSAE J514
Thread Type3/8-24 UNF
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeCap
Weight0.02 lb
Cross References
Aeroquip210292-3S
Parker3 FNTX-S
SAE Ref.SAE J514 3 070112C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
