HGW HYDRAULICS

0304-C-04

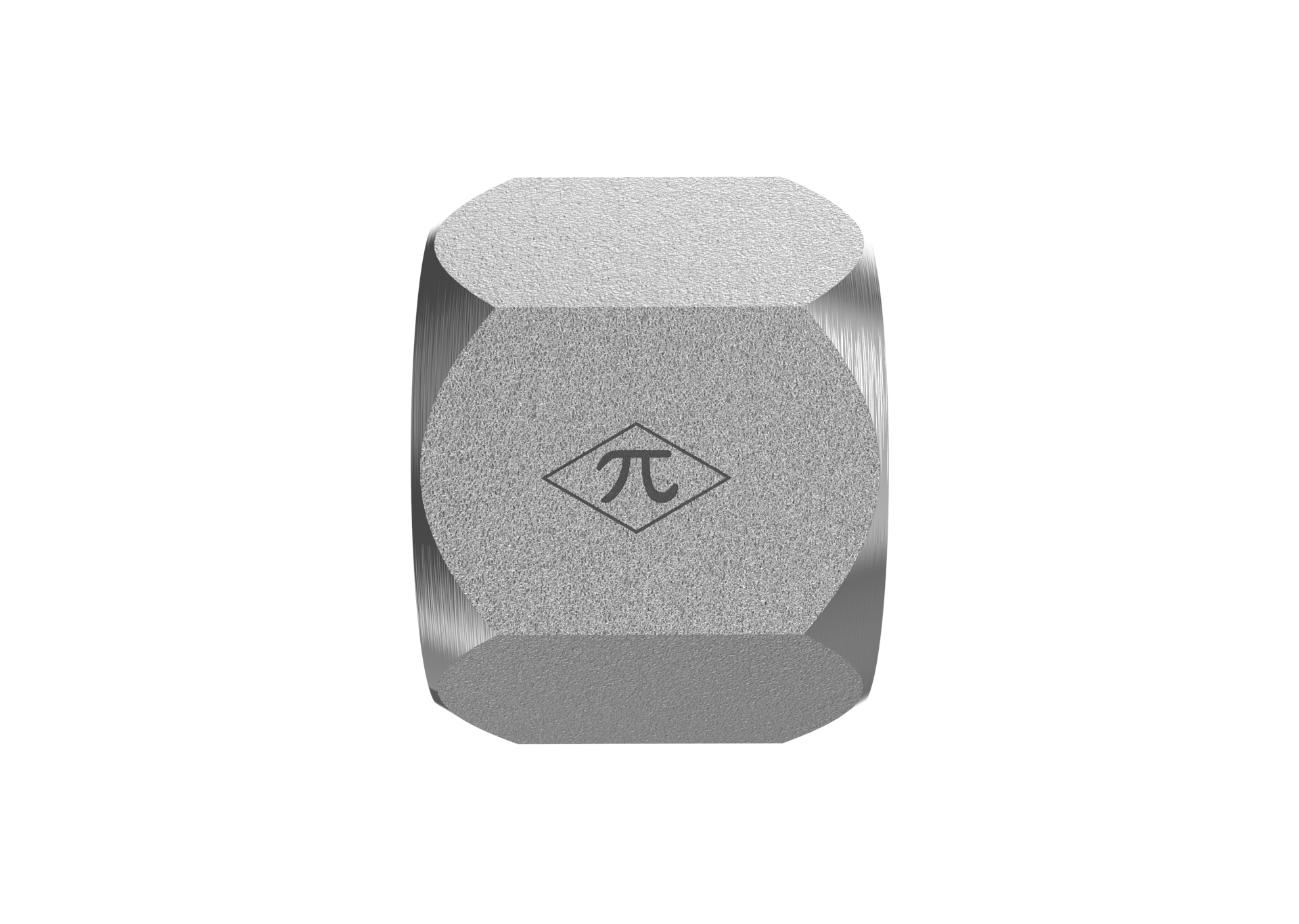

1/4" Female JIC 37° Cap · Female Cap

The HGW 0304-C-04 is a female cap for 1/4" female JIC 37° cap applications. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Cap
$0.83
(0) Write a Review
SKU:
0304-C-04

Product Details

Connection A
TypeFemale JIC 37° Cap
Tube Size1/4"
StandardSAE J514
Thread7/16-20
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Cap
Weight0.03 lb
Cross References
Aeroquip210292-4S
Parker4 FNTX-S
SAE Ref.SAE J514 4 070112C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
