HGW HYDRAULICS

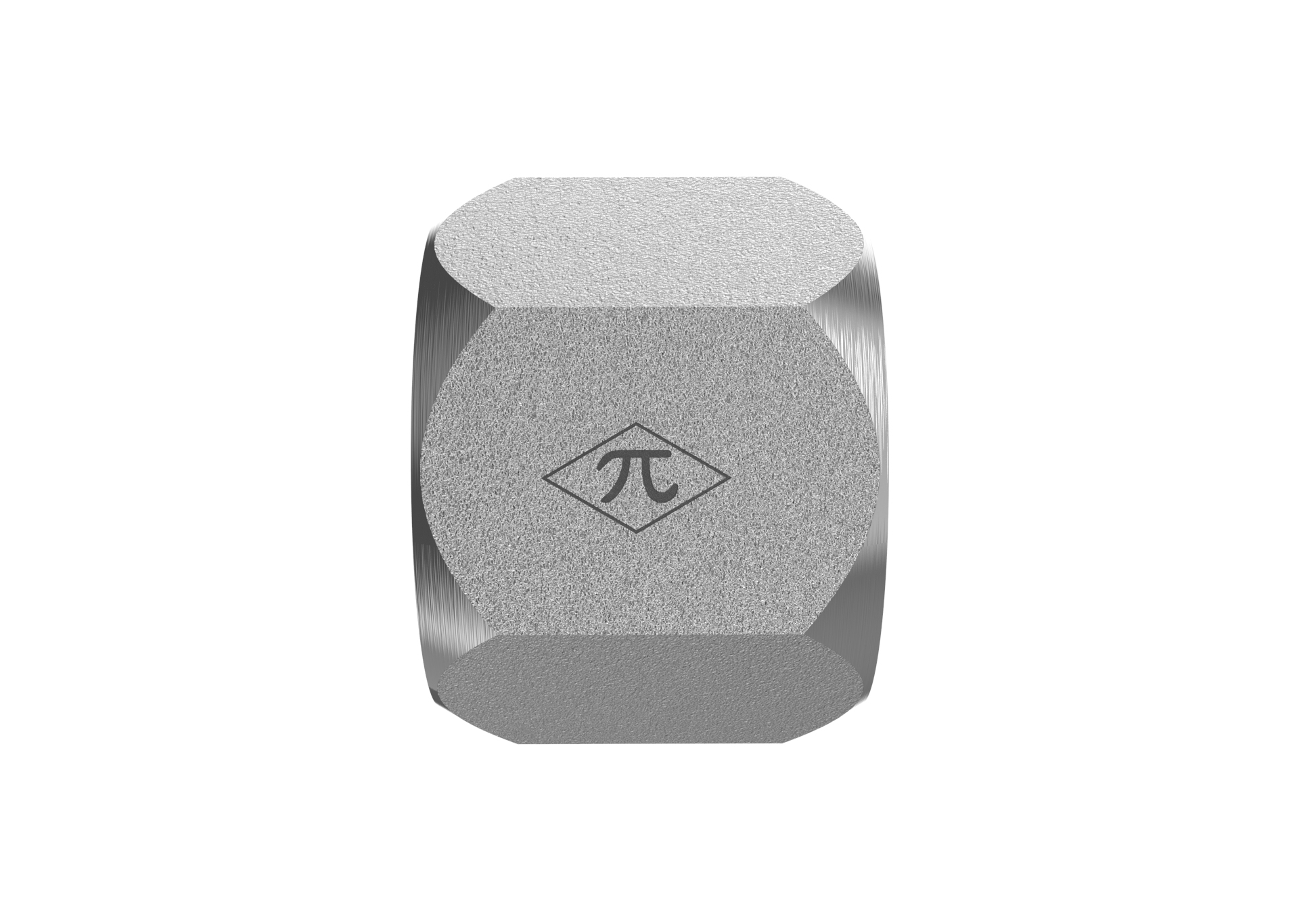

0304-C-12

3/4" Female JIC 37° Cap · Female Cap

The HGW 0304-C-12 is a female cap for 3/4" female JIC 37° cap applications. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Cap
$2.41
(0) Write a Review
SKU:
0304-C-12

Product Details

Connection A
TypeFemale JIC 37° Cap
Tube Size3/4"
StandardSAE J514
Thread1-1/16-12
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Cap
Weight0.19 lb
Cross References
Aeroquip210292-12S
Parker12 FNTX-S
SAE Ref.SAE J514 12 070112C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
