HGW HYDRAULICS

0304-C-40

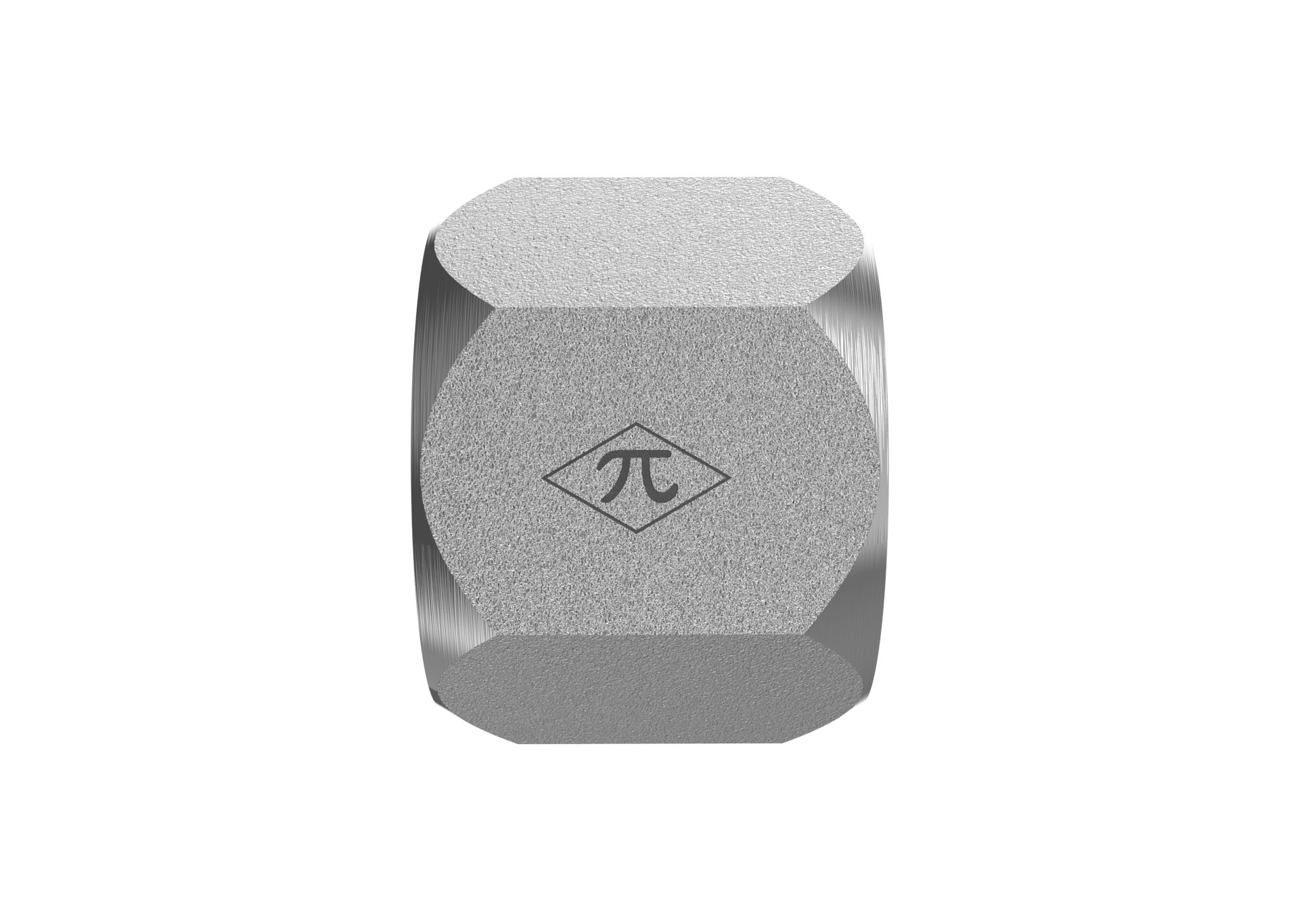

2-1/2" Female JIC 37° Cap · Female Cap

The HGW 0304-C-40 is a female cap for 2-1/2" female JIC 37° cap applications. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Cap
$537.28
(0) Write a Review
SKU:
0304-C-40

Product Details

Connection A
TypeFemale JIC 37° Cap
Tube Size2-1/2"
StandardSAE J514
Thread3-12
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Cap
Weight1.93 lb
Cross References
Aeroquip210292-40S
Parker40 FNTX-S
SAE Ref.SAE J514 40 070112C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
