HGW HYDRAULICS

0306-02

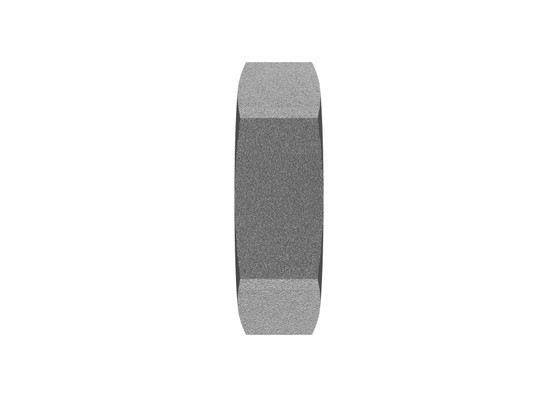

1/8" JIC 37° Bulkhead Locknut · Bulkhead Locknut

The HGW 0306-02 is a bulkhead locknut for 1/8" JIC 37° bulkhead locknut applications. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Bulkhead Locknut
$0.84
(0) Write a Review
SKU:
0306-02

Product Details

Connection A
TypeJIC 37° Bulkhead Locknut
Tube Size1/8"
StandardSAE J514
Thread5/16-24
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeBulkhead Locknut
Weight0.02 lb
Cross References
Aeroquip210212-2S
Parker2 WLN-S
SAE Ref.SAE J514 2 070118C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
