0306-10-SS
5/8" JIC Locknut

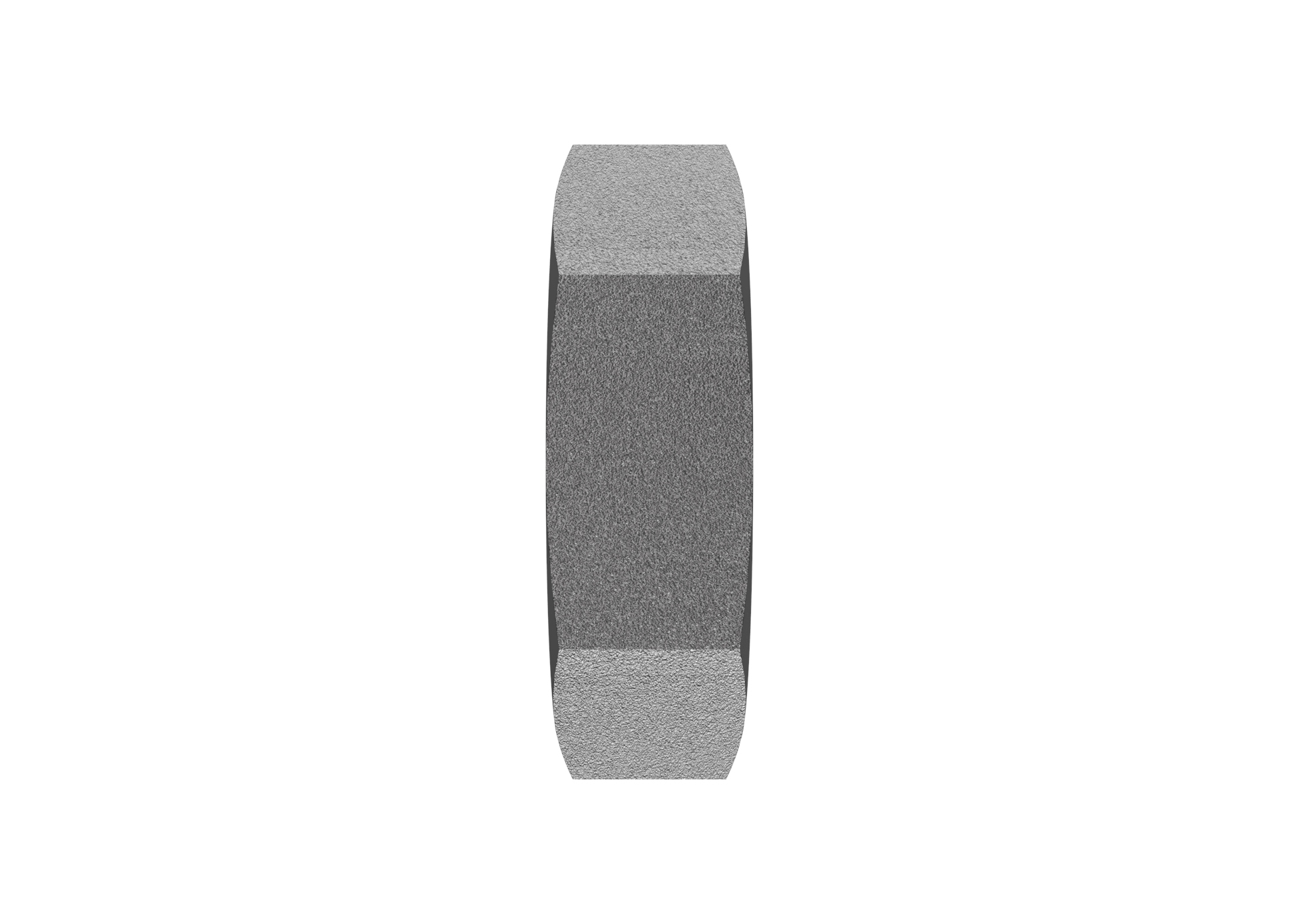

0306-10-SS is a 5/8" JIC Locknut in the 0306 Series. For assembly with 37° flare bulkhead fittings to secure them through panels or walls.
MSRP:
Was:
Now:
$10.60
(You save
)
SKU:
0306-10-SS
share on:
Share
f
X
in
@
Print
Product Details
Connection A
Type JIC Locknut
Tube OD 5/8"
Standard SAE J514
Thread Type 7/8-14 UNF
Specifications
Material Stainless Steel
Shape Lock Nut
Weight 0.07 lb
Plating None
Cross References
Aeroquip 259-210212-10
Parker 10 WLN-SS
SAE Ref. SAE J514 10 070118S
Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
