HGW HYDRAULICS

0318-20

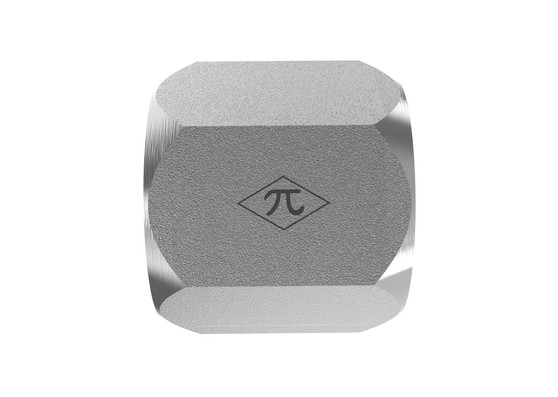

1-1/4" JIC 37° Tube Nut · Tube Nut

The HGW 0318-20 is a tube nut for 1-1/4" JIC 37° tube nut applications. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Tube Nut
$4.69
(0) Write a Review
SKU:
0318-20

Product Details

Connection A
TypeJIC 37° Tube Nut
Tube Size1-1/4"
StandardSAE J514
Thread1-5/8-12
Connection B
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeTube Nut
Weight0.53 lb
Cross References
Aeroquip1290-20
Parker20 BTX
SAE Ref.70110

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
