0403-20-16

1-1/4" Bore x 1" Male JIC

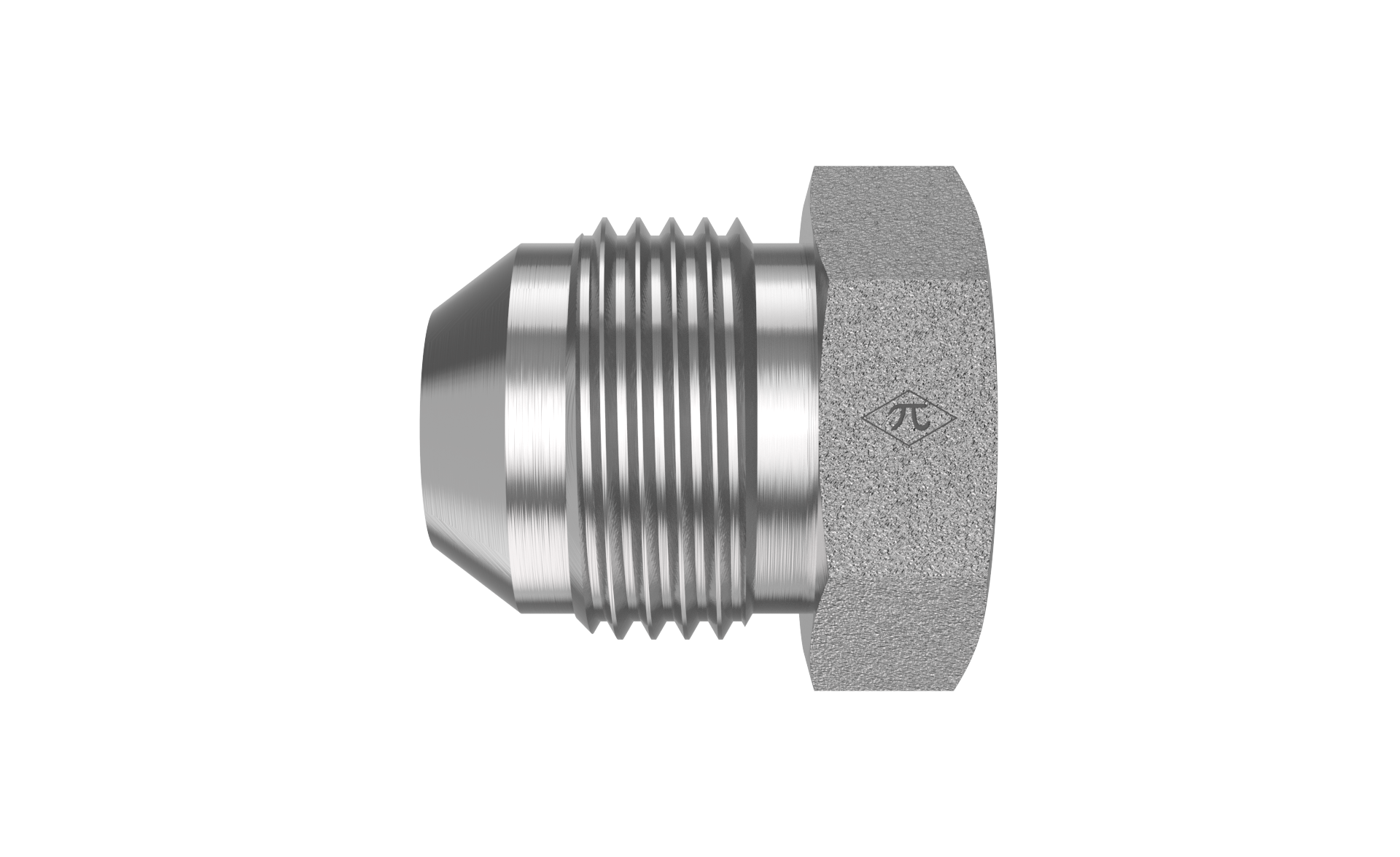

0403-20-16 is a 1-1/4" Bore x 1" Male JIC in the 0403 Series. For permanently joining a tube end (weld bore) to a male JIC line connection.

  • Steel
  • Unplated
  • Male Connector
$14.33
(0) Write a Review
SKU:
0403-20-16

Product Details

Connection A
TypeBore
Size1-1/4"
StandardNot Defined
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingUnplated
ShapeMale Connector
Weight0.48 lb
Cross References
Aeroquip73014-20-16S
Parker16-20 XHB3-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
