HGW HYDRAULICS

0403-TS-08-08

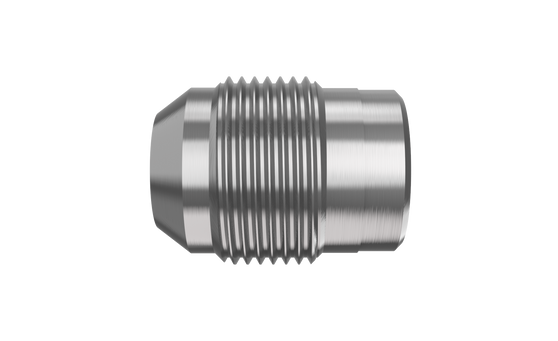

1/2" Male JIC x 1/2" Tube Spud

0403-TS-08-08 is a 1/2" Male JIC x 1/2" Tube Spud in the 0403-TS Series. For welded connections of 37° flared tubes or lines, with a Tube Spud weld end on one side and a Male JIC connection on the other.

  • Steel
  • Unplated
  • Tube Spud
$2.03
(0) Write a Review
SKU:
0403-TS-08-08

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeTube Spud
Tube OD1/2"
StandardSAE J514
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingUnplated
ShapeTube Spud
Weight0.06 lb
Cross References
Aeroquip73420-1-8S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
