0403-TS-10-10

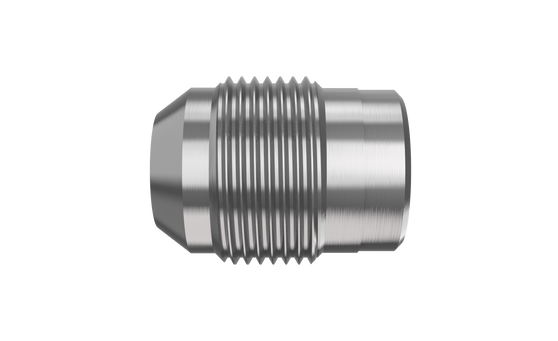

5/8" Male JIC x 5/8" Tube Spud

0403-TS-10-10 is a 5/8" Male JIC x 5/8" Tube Spud in the 0403-TS Series. For welded connections of 37° flared tubes or lines, with a Tube Spud weld end on one side and a Male JIC connection on the other.

  • Steel
  • Unplated
  • Tube Spud
$10.55
(0) Write a Review
SKU:
0403-TS-10-10

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Thread Type7/8-14 UNF
Connection B
TypeTube Spud
Tube OD5/8"
StandardSAE J514
Thread Type7/8-14 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingUnplated
ShapeTube Spud
Weight0.09 lb
Cross References
Aeroquip73420-3-10S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
