HGW HYDRAULICS

0403-TS-12-12

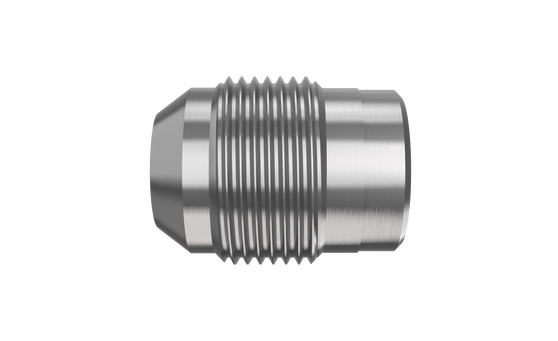

3/4" Male JIC x 3/4" Tube Spud

0403-TS-12-12 is a 3/4" Male JIC x 3/4" Tube Spud in the 0403-TS Series. For welded connections of 37° flared tubes or lines, with a Tube Spud weld end on one side and a Male JIC connection on the other.

  • Steel
  • Unplated
  • Tube Spud
$4.26
(0) Write a Review
SKU:
0403-TS-12-12

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeTube Spud
Tube OD3/4"
StandardSAE J514
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingUnplated
ShapeTube Spud
Weight0.14 lb
Cross References
Aeroquip73420-3-12S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
