HGW HYDRAULICS

0403-TS-24-24

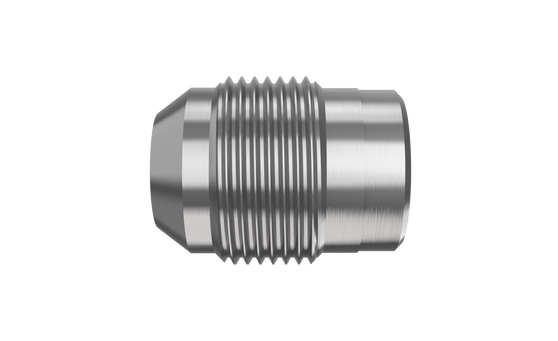

1-1/2" Male JIC x 1-1/2" Tube Spud

0403-TS-24-24 is a 1-1/2" Male JIC x 1-1/2" Tube Spud in the 0403-TS Series. For welded connections of 37° flared tubes or lines, with a Tube Spud weld end on one side and a Male JIC connection on the other.

  • Steel
  • Unplated
  • Tube Spud
$236.36
(0) Write a Review
SKU:
0403-TS-24-24

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeTube Spud
Tube OD1-1/2"
StandardSAE J514
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingUnplated
ShapeTube Spud
Weight0.44 lb
Cross References
Aeroquip73420-1-24S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
