HGW HYDRAULICS

1404-02-04

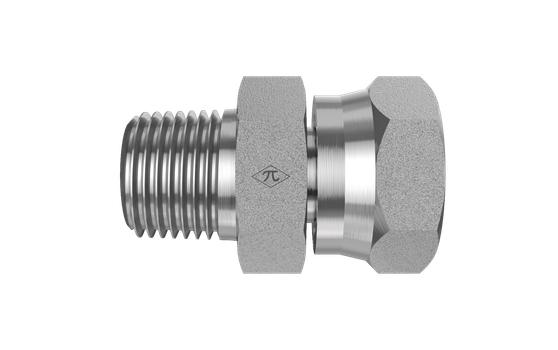

1/8" Male NPTF 30° x 1/4" Female NPSM Swivel

1404-02-04 is a 1/8" Male NPTF 30° x 1/4" Female NPSM Swivel in the 1404 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Connector
$1.73
(0) Write a Review
SKU:
1404-02-04

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type1/8-27 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Connector
Weight0.07 lb
Cross References
Aeroquip2045-4-2S
Parker0107-2-4
SAE Ref.SAE J514 4-2 140130C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
