HGW HYDRAULICS

1404-08-04-SS

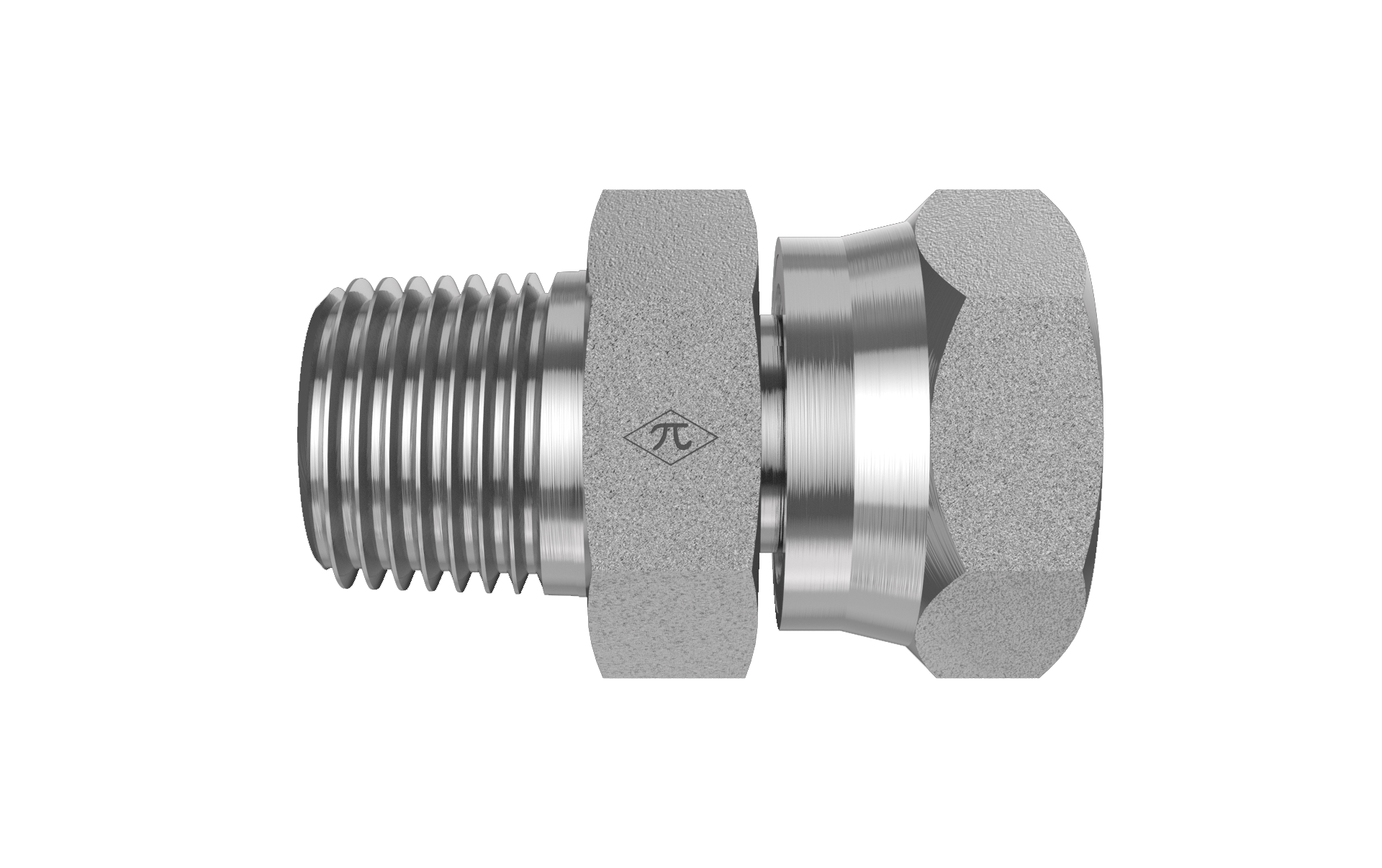

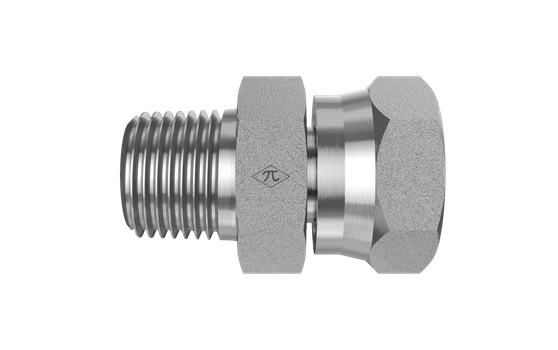

1/2" Male NPTF 30° x 1/4" Female NPSM Swivel

1404-08-04-SS is a 1/2" Male NPTF 30° x 1/4" Female NPSM Swivel in the 1404 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Male Swivel Connector
  • None
$161.53
(0) Write a Review
SKU:
1404-08-04-SS

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Swivel Connector
Weight0.03 lb
PlatingNone
Cross References
Aeroquip259-2045-4-8
Parker0107-8-4-SS
SAE Ref.SAE J514 4-8 140130S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
