HGW HYDRAULICS

1404-12-08

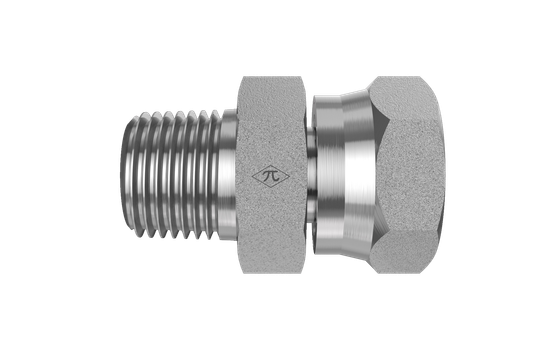

3/4" Male NPTF 30° x 1/2" Female NPSM Swivel

1404-12-08 is a 3/4" Male NPTF 30° x 1/2" Female NPSM Swivel in the 1404 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Connector
$3.72
(0) Write a Review
SKU:
1404-12-08

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Connector
Weight0.27 lb
Cross References
Aeroquip2045-8-12S
Parker0107-12-8
SAE Ref.SAE J514 8-12 140130C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
