HGW HYDRAULICS

1404-12-16-SS

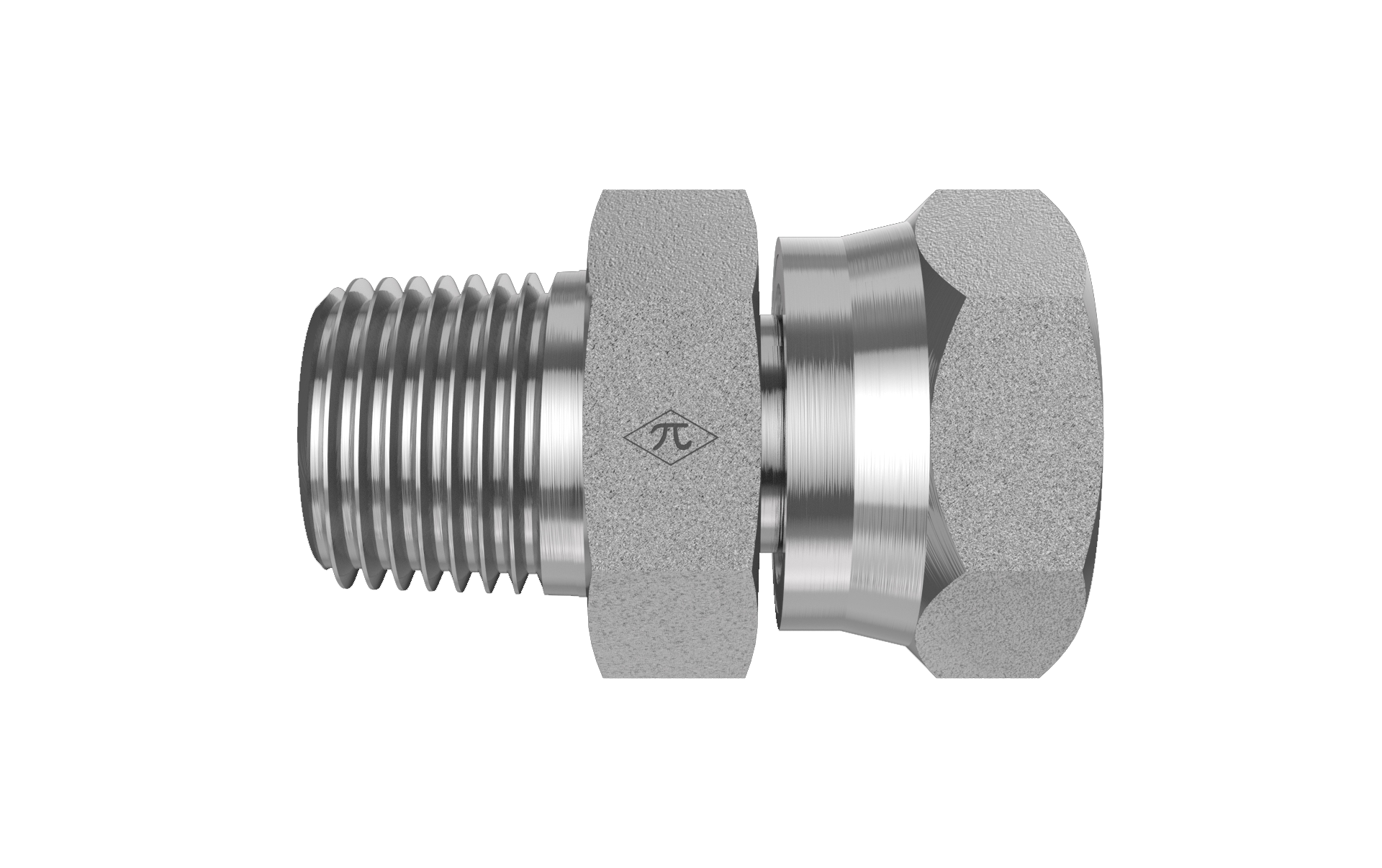

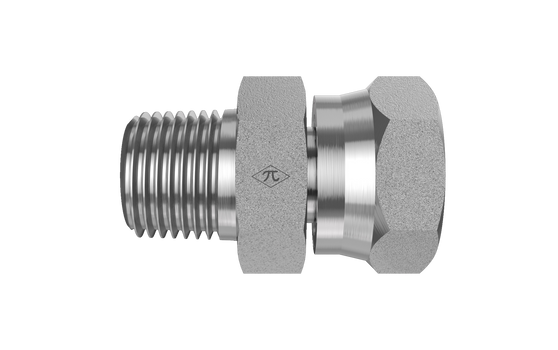

3/4" Male NPTF × 1" Female NPSM Swivel · Male Swivel Connector

The HGW 1404-12-16-SS is a male swivel connector joining 3/4" male NPTF to 1" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Male Swivel Connector
$105.39
(0) Write a Review
SKU:
1404-12-16-SS

Product Details

Connection A
TypeMale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Swivel Connector
Weight0.61 lb
Cross References
Aeroquip259-2045-16-12
Parker0107-12-16-SS
SAE Ref.SAE J514 16-12 140130S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
