HGW HYDRAULICS

1404-16-12

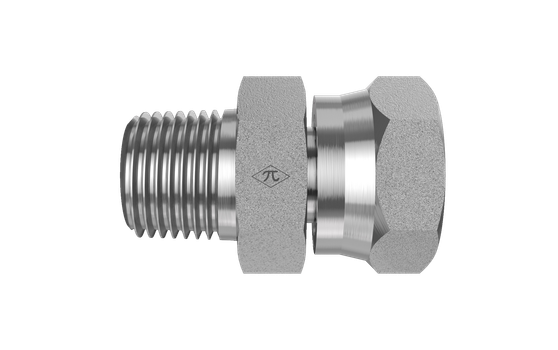

1" Male NPTF × 3/4" Female NPSM Swivel · Male Swivel Connector

The HGW 1404-16-12 is a male swivel connector joining 1" male NPTF to 3/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Connector
$6.24
(0) Write a Review
SKU:
1404-16-12

Product Details

Connection A
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Connector
Weight0.49 lb
Cross References
Aeroquip2045-12-16S
Parker0107-16-12
SAE Ref.SAE J514 12-16 140130C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
