1404-16-24

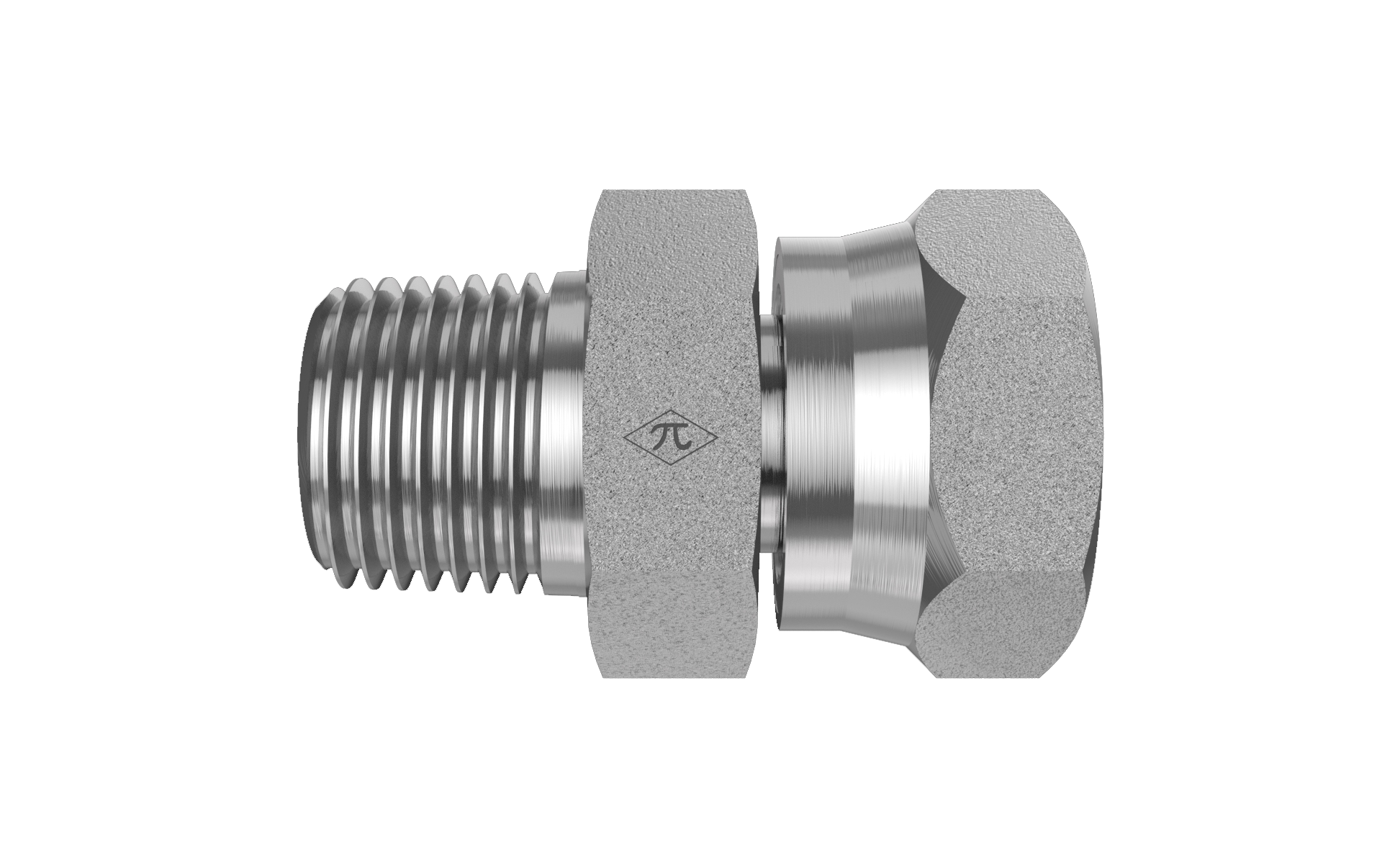

1" Male NPTF 30° x 1-1/2" Female NPSM Swivel

1404-16-24 is a 1" Male NPTF 30° x 1-1/2" Female NPSM Swivel in the 1404 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Connector
$15.26
(0) Write a Review
SKU:
1404-16-24

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Connector
Weight1.03 lb
Cross References
Aeroquip2045-24-16S
Parker0107-16-24
SAE Ref.SAE J514 24-16 140130C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
