HGW HYDRAULICS

1404-20-16

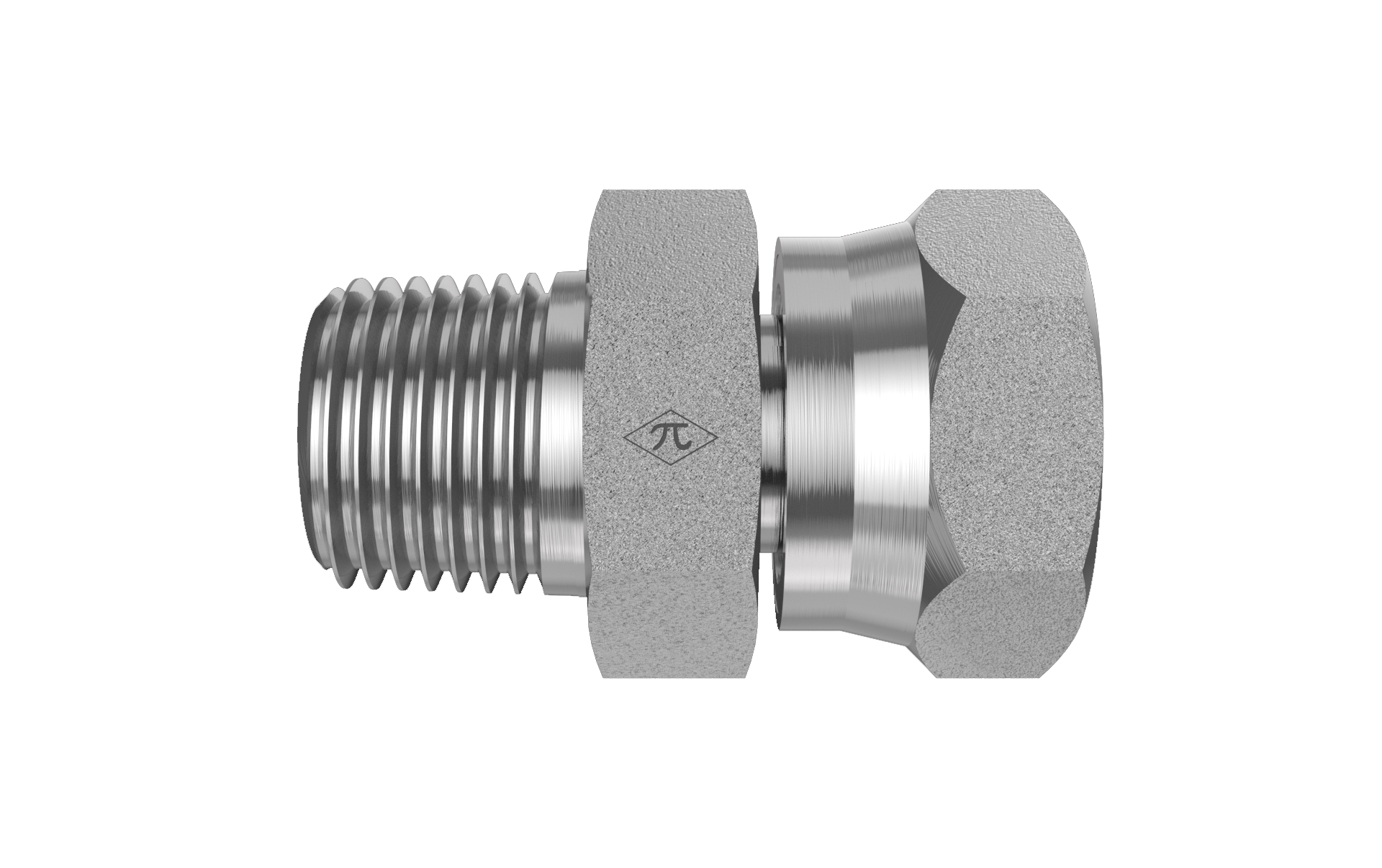

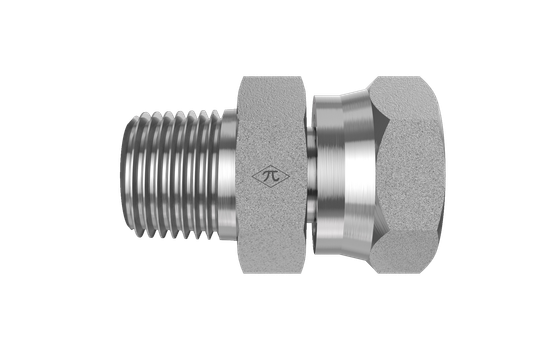

1-1/4" Male NPTF 30° x 1" Female NPSM Swivel

1404-20-16 is a 1-1/4" Male NPTF 30° x 1" Female NPSM Swivel in the 1404 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Connector
$11.29
(0) Write a Review
SKU:
1404-20-16

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/4-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-1/4-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Connector
Weight0.77 lb
Cross References
Aeroquip2045-16-20S
Parker0107-20-16
SAE Ref.SAE J514 16-20 140130C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
