HGW HYDRAULICS

1404-24-20

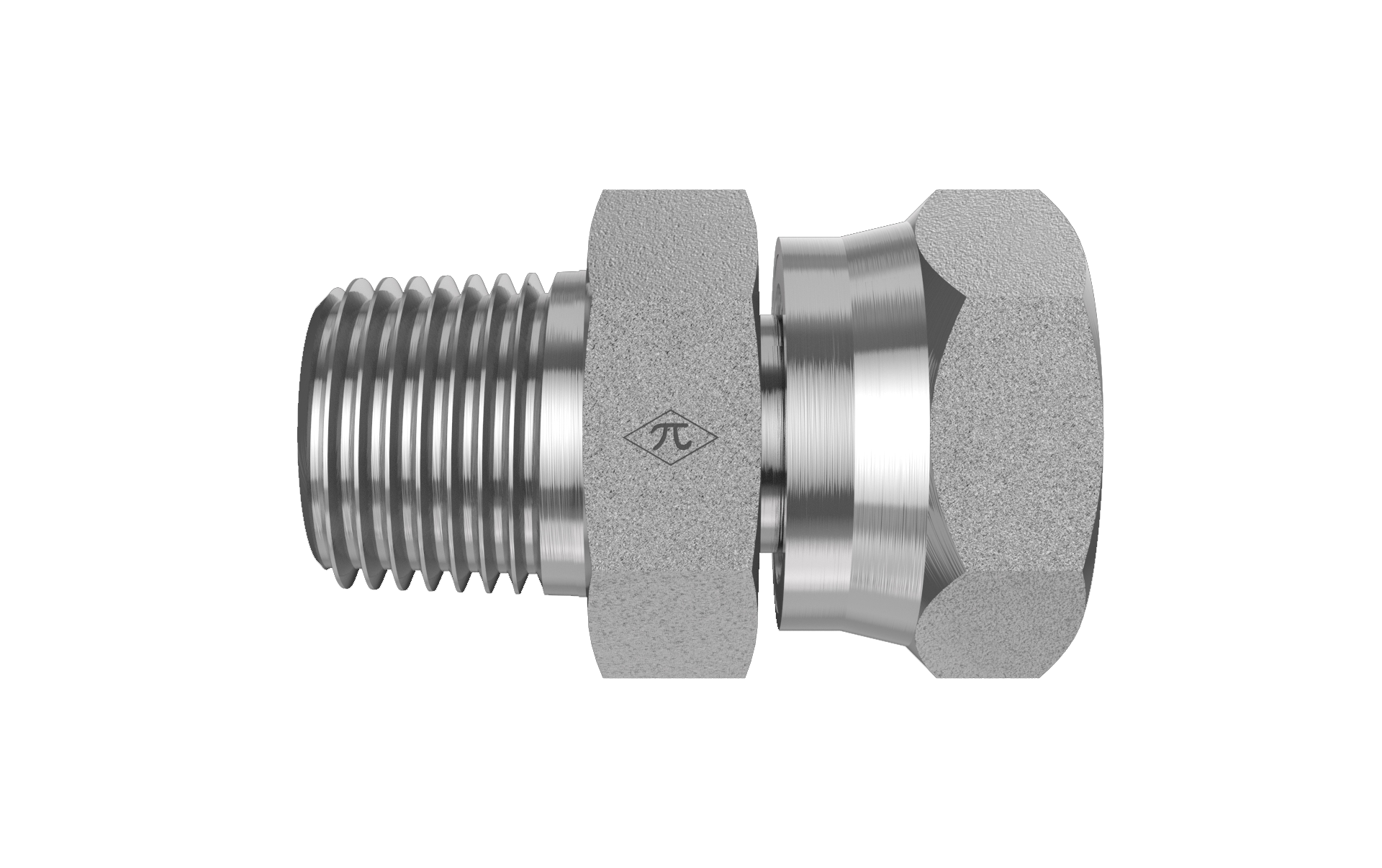

1-1/2" Male NPTF 30° x 1-1/4" Female NPSM Swivel

1404-24-20 is a 1-1/2" Male NPTF 30° x 1-1/4" Female NPSM Swivel in the 1404 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Connector
$16.76
(0) Write a Review
SKU:
1404-24-20

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J514
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Connector
Weight0.96 lb
Cross References
Aeroquip2045-20-24S
Parker0107-24-20
SAE Ref.SAE J514 20-24 140130C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
