HGW HYDRAULICS

1404-40-40

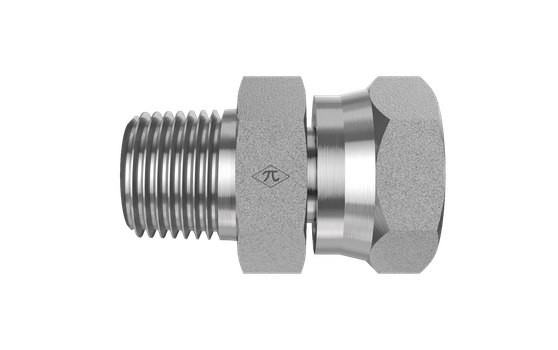

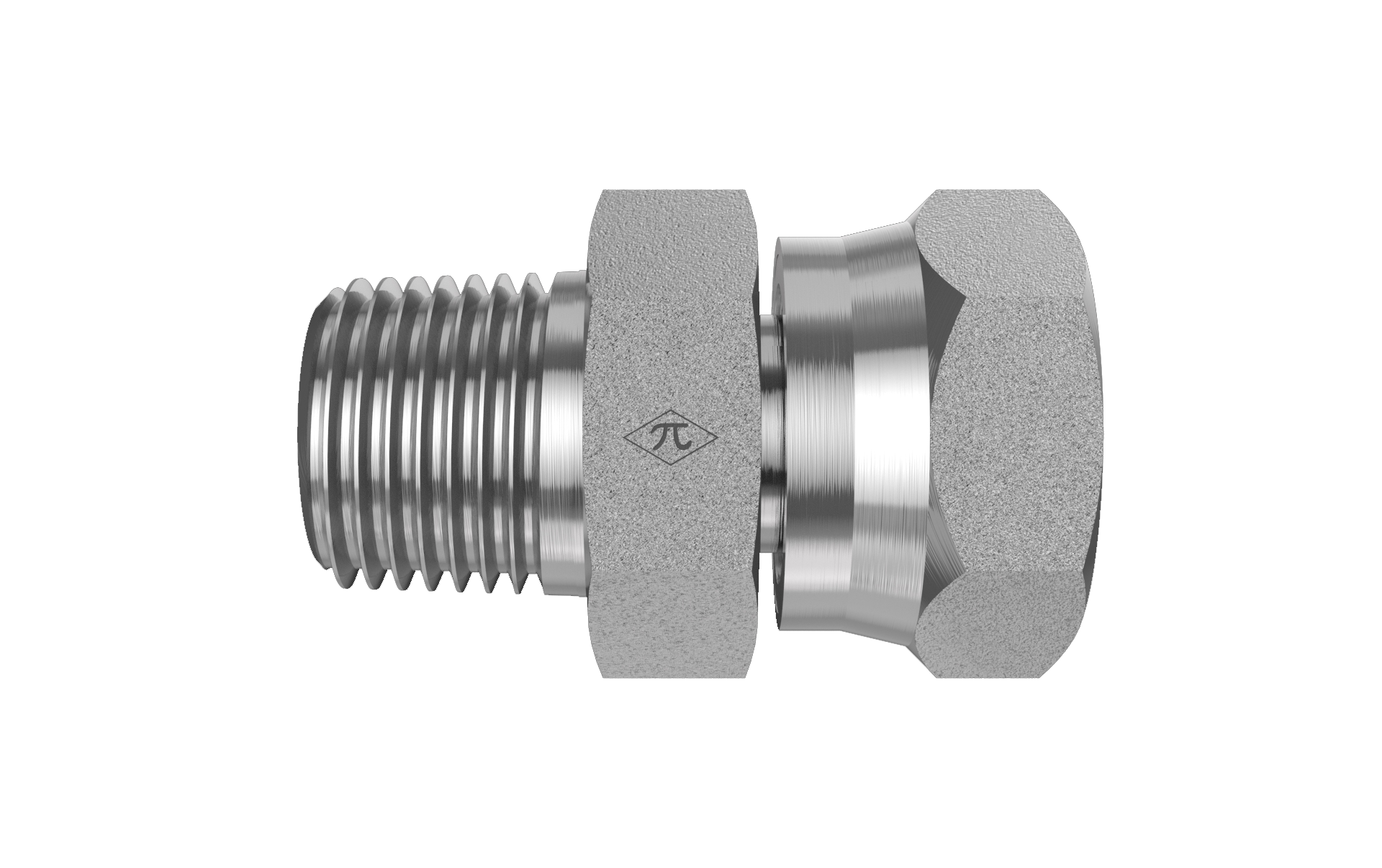

2-1/2" Male NPTF × 2-1/2" Female NPSM Swivel · Male Swivel Connector

The HGW 1404-40-40 is a male swivel connector joining 2-1/2" male NPTF to 2-1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swivel Connector
$1,241.85
(0) Write a Review
SKU:
1404-40-40

Product Details

Connection A
TypeMale NPTF
Pipe Size2-1/2"
StandardSAE J476
Thread Type2-1/2-8 NPTF
Connection B
TypeFemale NPSM Swivel
Size2-1/2"
StandardSAE J514
Thread Type2-1/2-8 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Connector
Weight2.04 lb
Cross References
Aeroquip2045-40-40S
Parker0107-40-40
SAE Ref.SAE J514 40-40 140130C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
