HGW HYDRAULICS

1405-04-06-SS

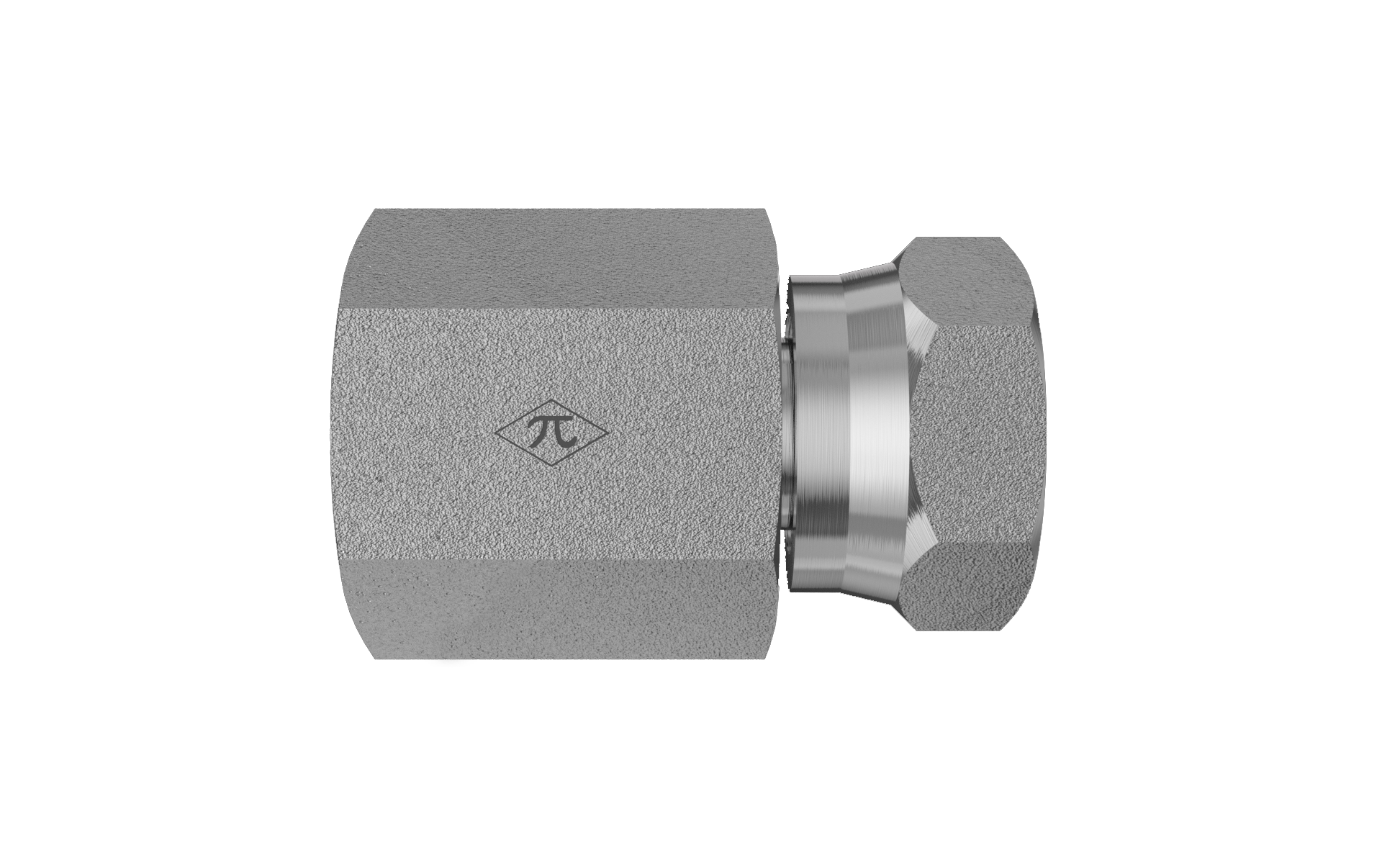

1/4" Female NPTF × 3/8" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-04-06-SS is a female swivel connector joining 1/4" female NPTF to 3/8" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Swivel Connector
$10.54
(0) Write a Review
SKU:
1405-04-06-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Connector
Weight0.12 lb
Cross References
Aeroquip259-2046-6-4
Parker0207-4-6-SS
SAE Ref.SAE J514 6-4 140131S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
