HGW HYDRAULICS

1405-04-06

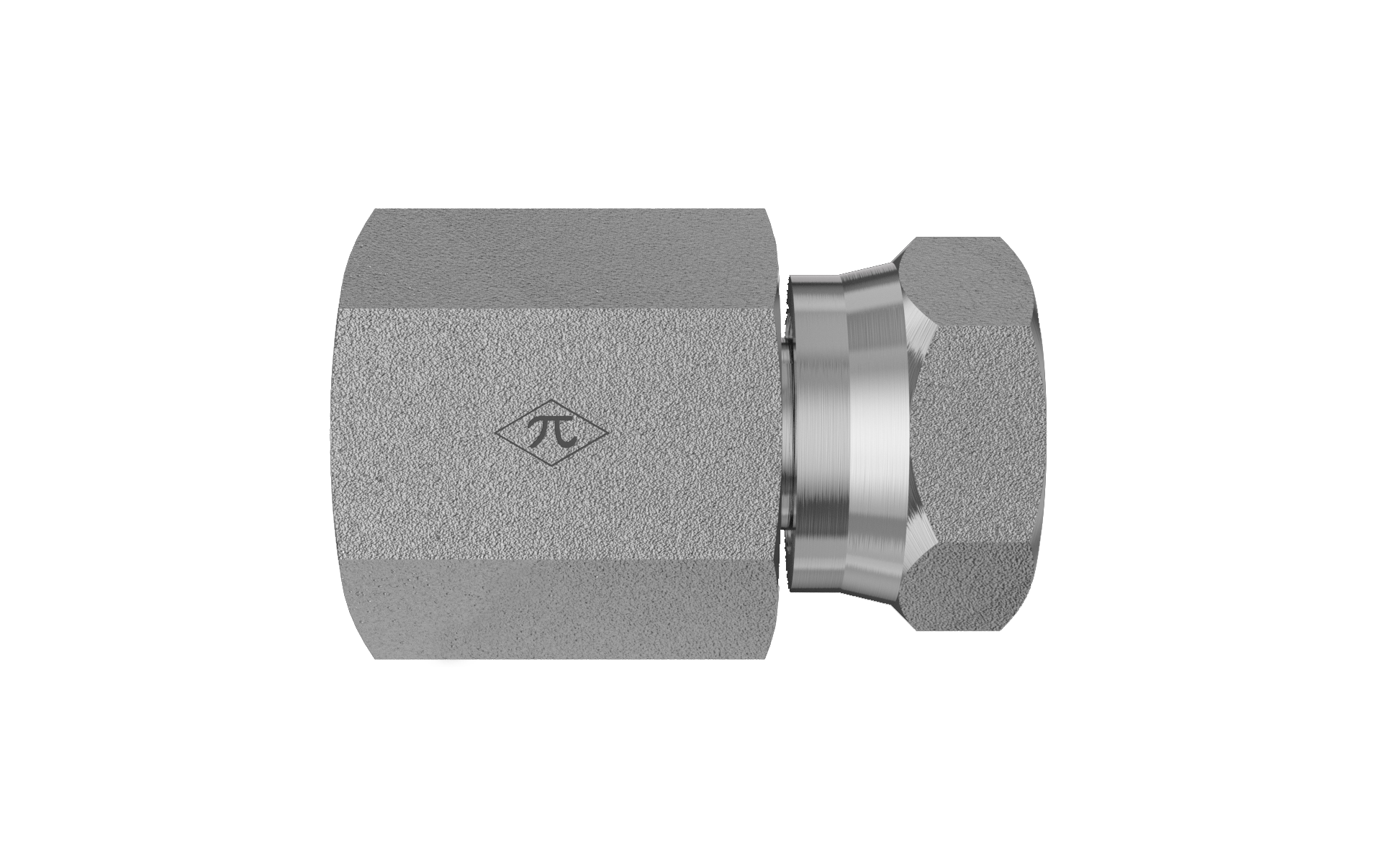

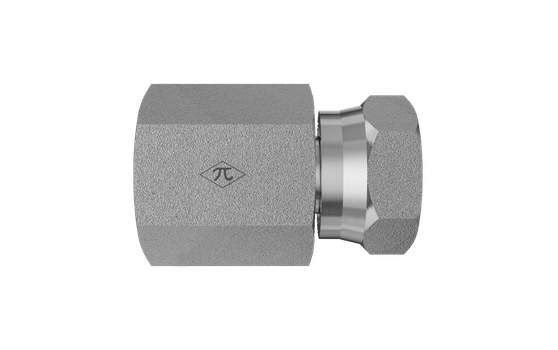

1/4" Female NPTF x 3/8" Female NPSM Swivel

1405-04-06 is a 1/4" Female NPTF x 3/8" Female NPSM Swivel in the 1405 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$2.76
(0) Write a Review
SKU:
1405-04-06

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.13 lb
Cross References
Aeroquip2046-6-4S
Parker0207-4-6
SAE Ref.SAE J514 6-4 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
