HGW HYDRAULICS

1405-06-04

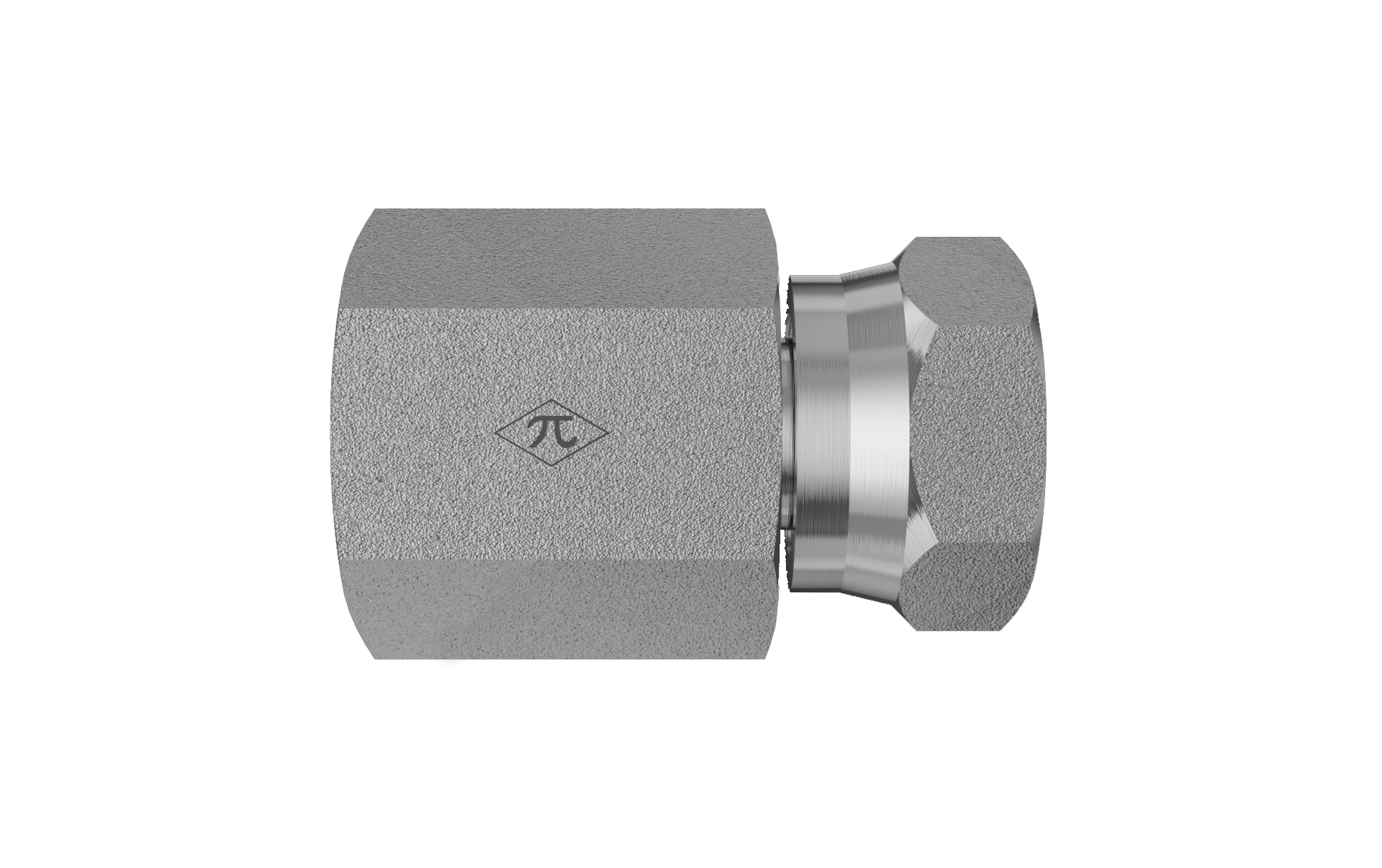

3/8" Female NPTF × 1/4" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-06-04 is a female swivel connector joining 3/8" female NPTF to 1/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$3.24
(0) Write a Review
SKU:
1405-06-04

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.15 lb
Cross References
Aeroquip2046-4-6S
Parker0207-6-4
SAE Ref.SAE J514 4-6 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
