1405-06-08-SS

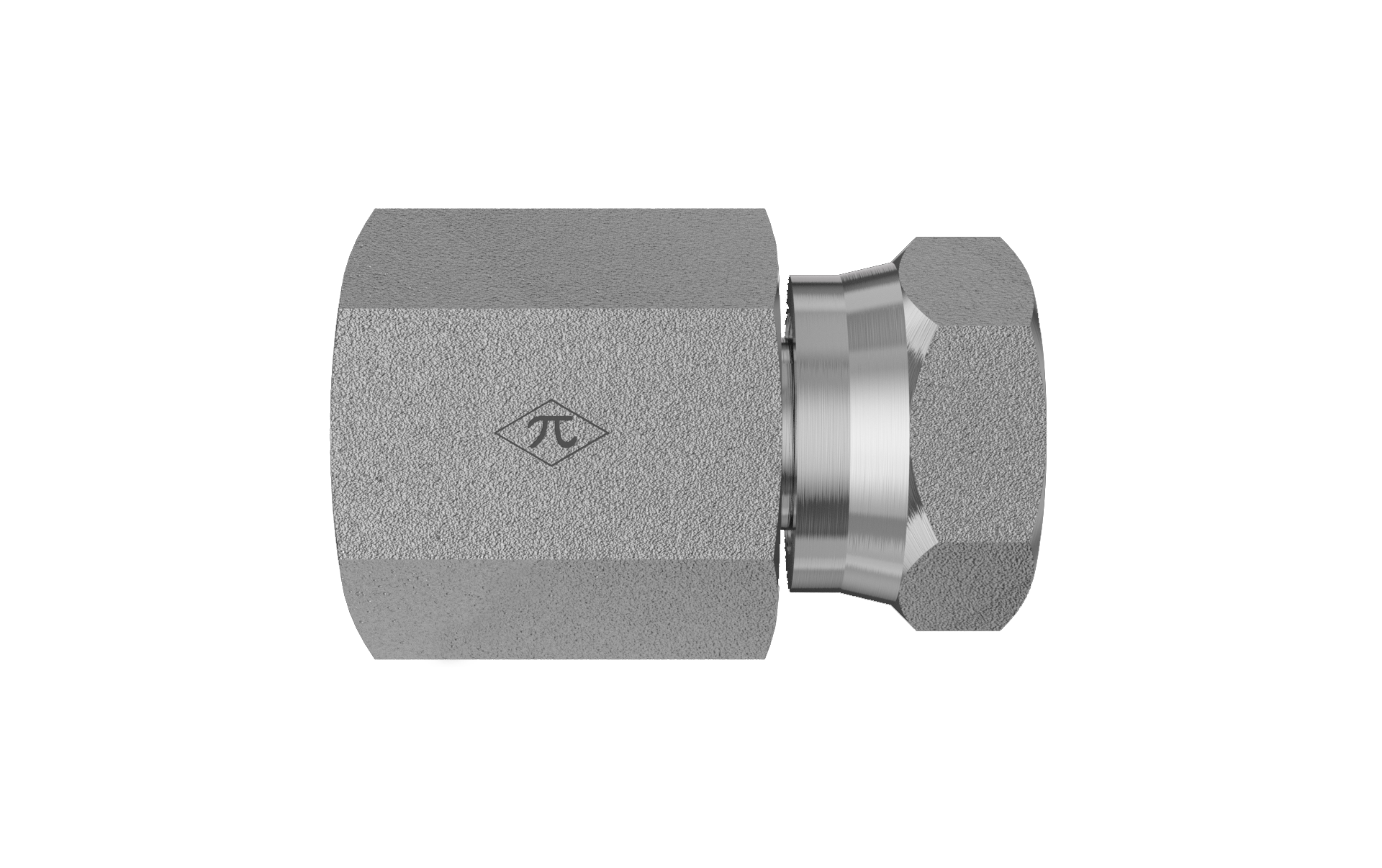

3/8" Female NPTF × 1/2" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-06-08-SS is a female swivel connector joining 3/8" female NPTF to 1/2" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Swivel Connector
$87.18
(0) Write a Review
SKU:
1405-06-08-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Connector
Weight0.21 lb
Cross References
Aeroquip259-2046-8-6
Parker0207-6-8-SS
SAE Ref.SAE J514 8-6 140131S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
