HGW HYDRAULICS

1405-06-08

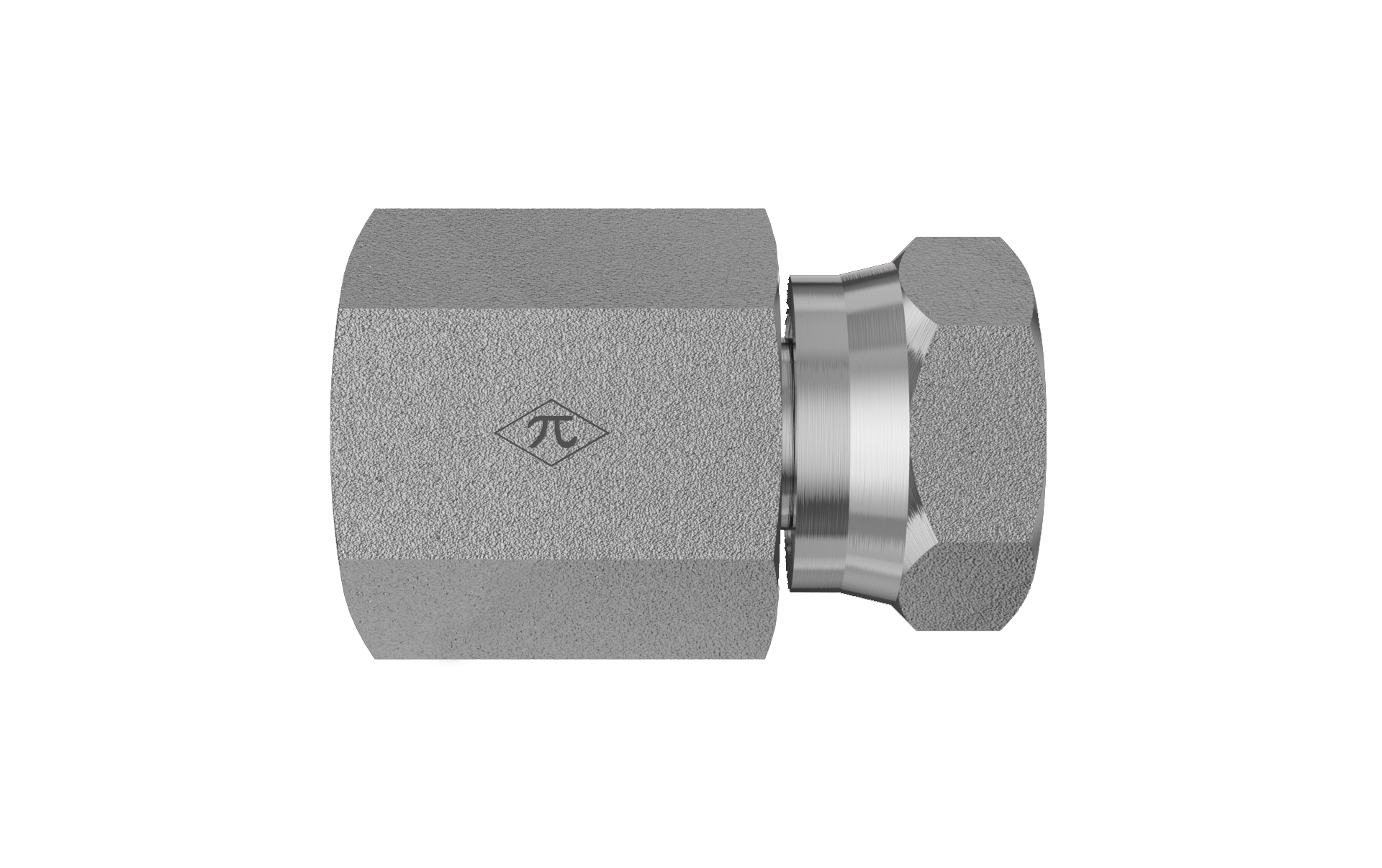

3/8" Female NPTF x 1/2" Female NPSM Swivel

1405-06-08 is a 3/8" Female NPTF x 1/2" Female NPSM Swivel in the 1405 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$3.02
(0) Write a Review
SKU:
1405-06-08

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.21 lb
Cross References
Aeroquip2046-8-6S
Parker0207-6-8
SAE Ref.SAE J514 8-6 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
