HGW HYDRAULICS

1405-08-08

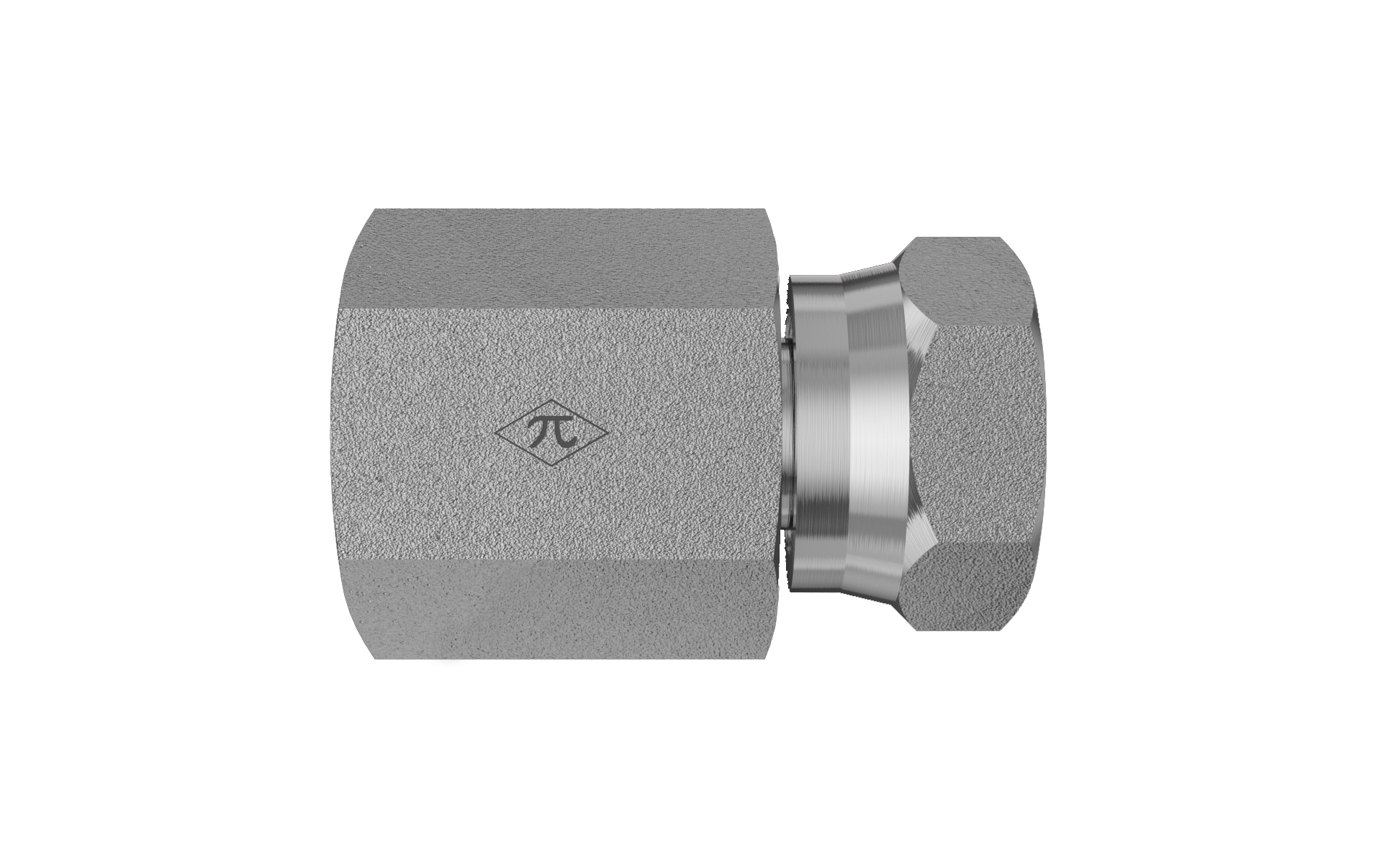

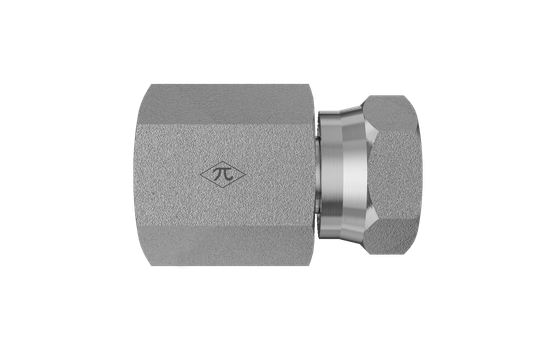

1/2" Female NPTF x 1/2" Female NPSM Swivel

1405-08-08 is a 1/2" Female NPTF x 1/2" Female NPSM Swivel in the 1405 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$2.89
(0) Write a Review
SKU:
1405-08-08

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.24 lb
Cross References
Aeroquip2046-8-8S
Parker0207-8-8
SAE Ref.SAE J514 8-8 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
