HGW HYDRAULICS

1405-08-12

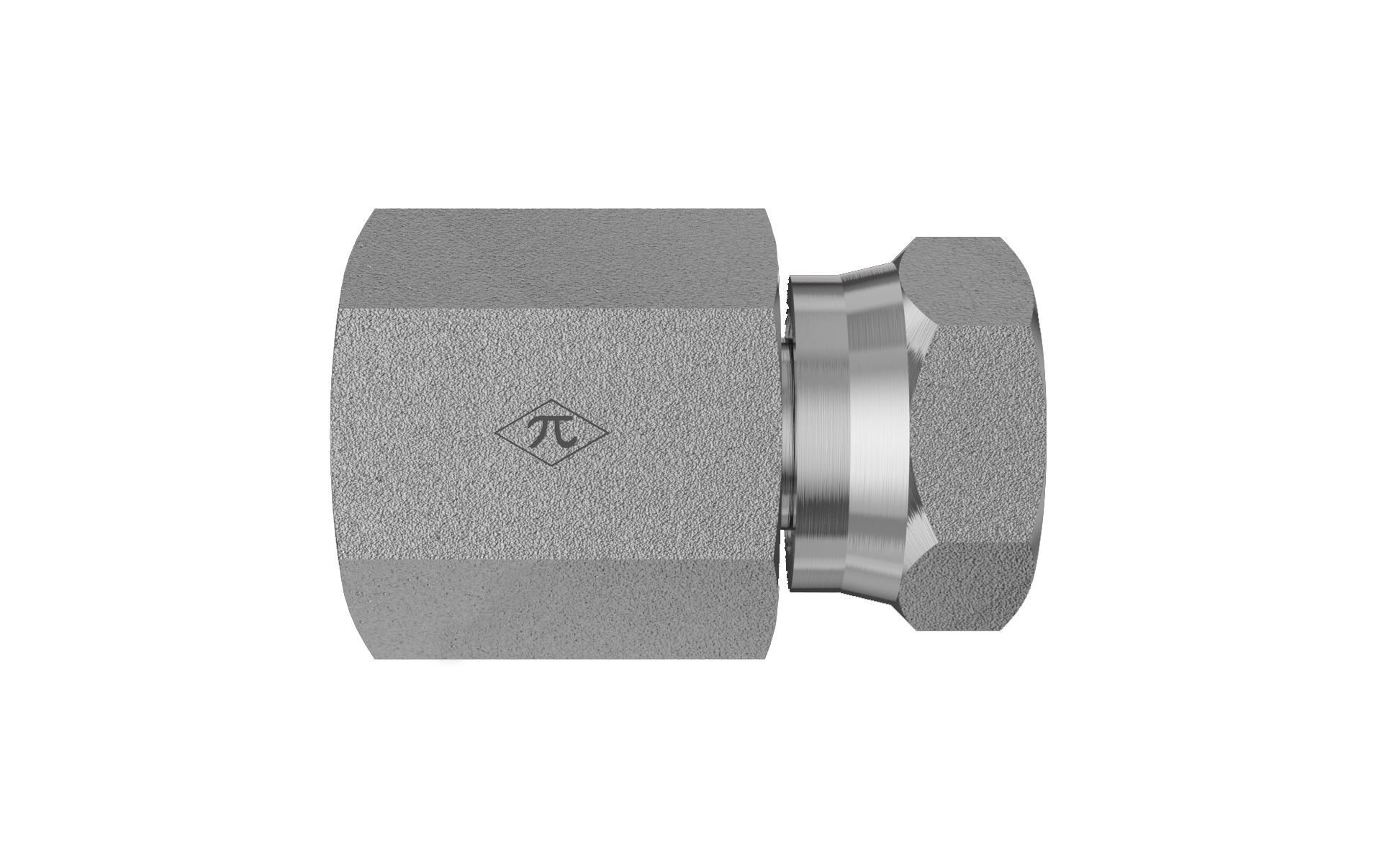

1/2" Female NPTF × 3/4" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-08-12 is a female swivel connector joining 1/2" female NPTF to 3/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$5.92
(0) Write a Review
SKU:
1405-08-12

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.44 lb
Cross References
Aeroquip2046-12-8S
Parker0207-8-12
SAE Ref.SAE J514 12-8 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
