HGW HYDRAULICS

1405-12-16

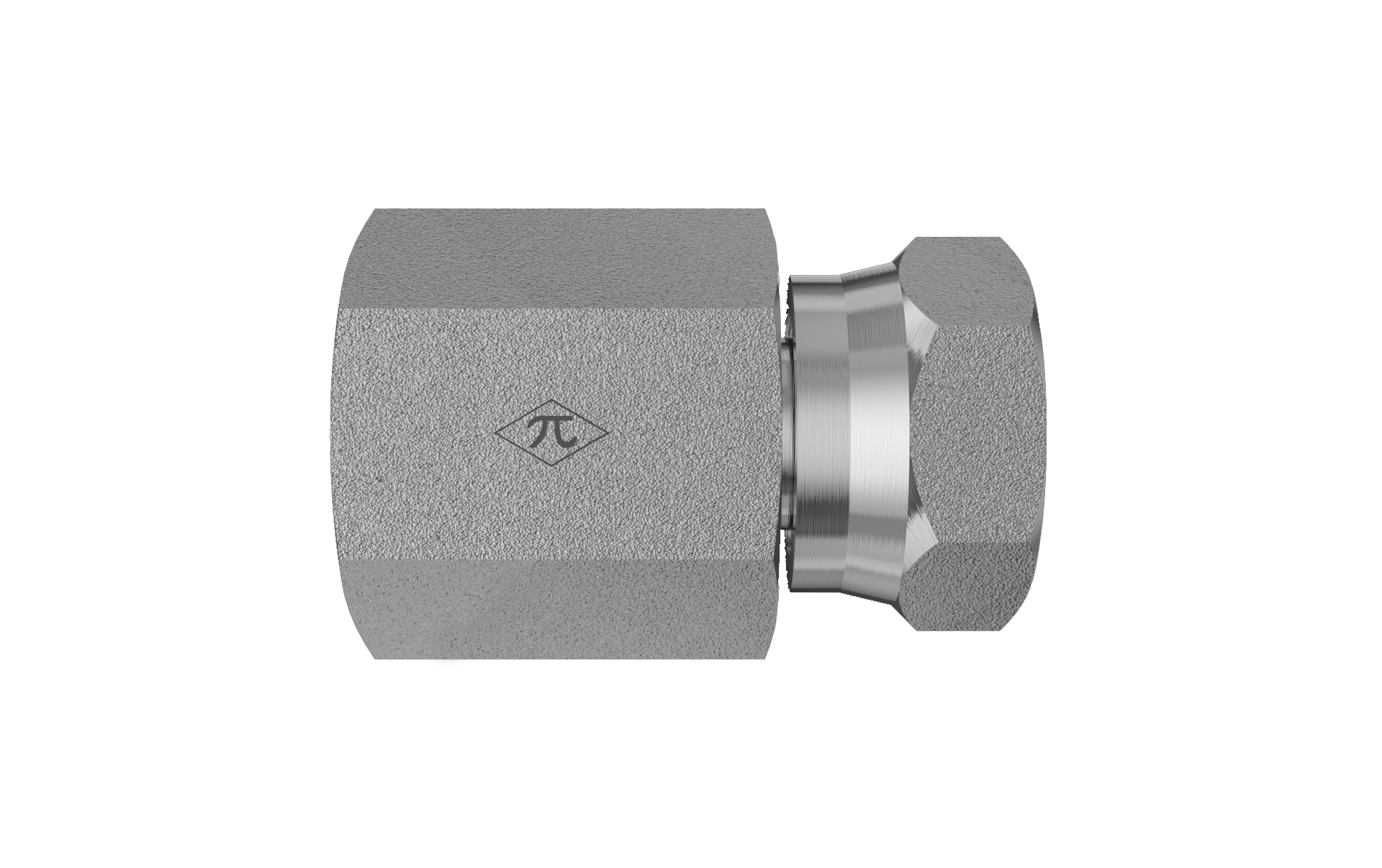

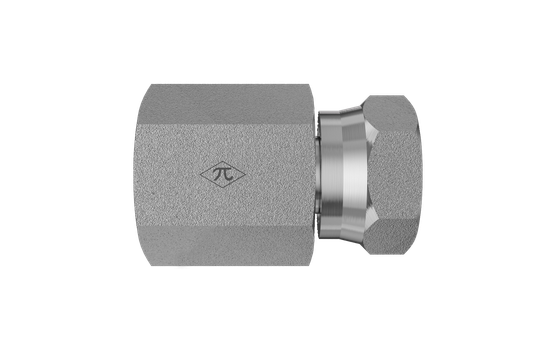

3/4" Female NPTF × 1" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-12-16 is a female swivel connector joining 3/4" female NPTF to 1" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$8.36
(0) Write a Review
SKU:
1405-12-16

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/4"
StandardSAE J476
Thread Type3/4-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type3/4-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.69 lb
Cross References
Aeroquip2046-16-12S
Parker0207-12-16
SAE Ref.SAE J514 16-12 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
