HGW HYDRAULICS

1405-16-16-SS

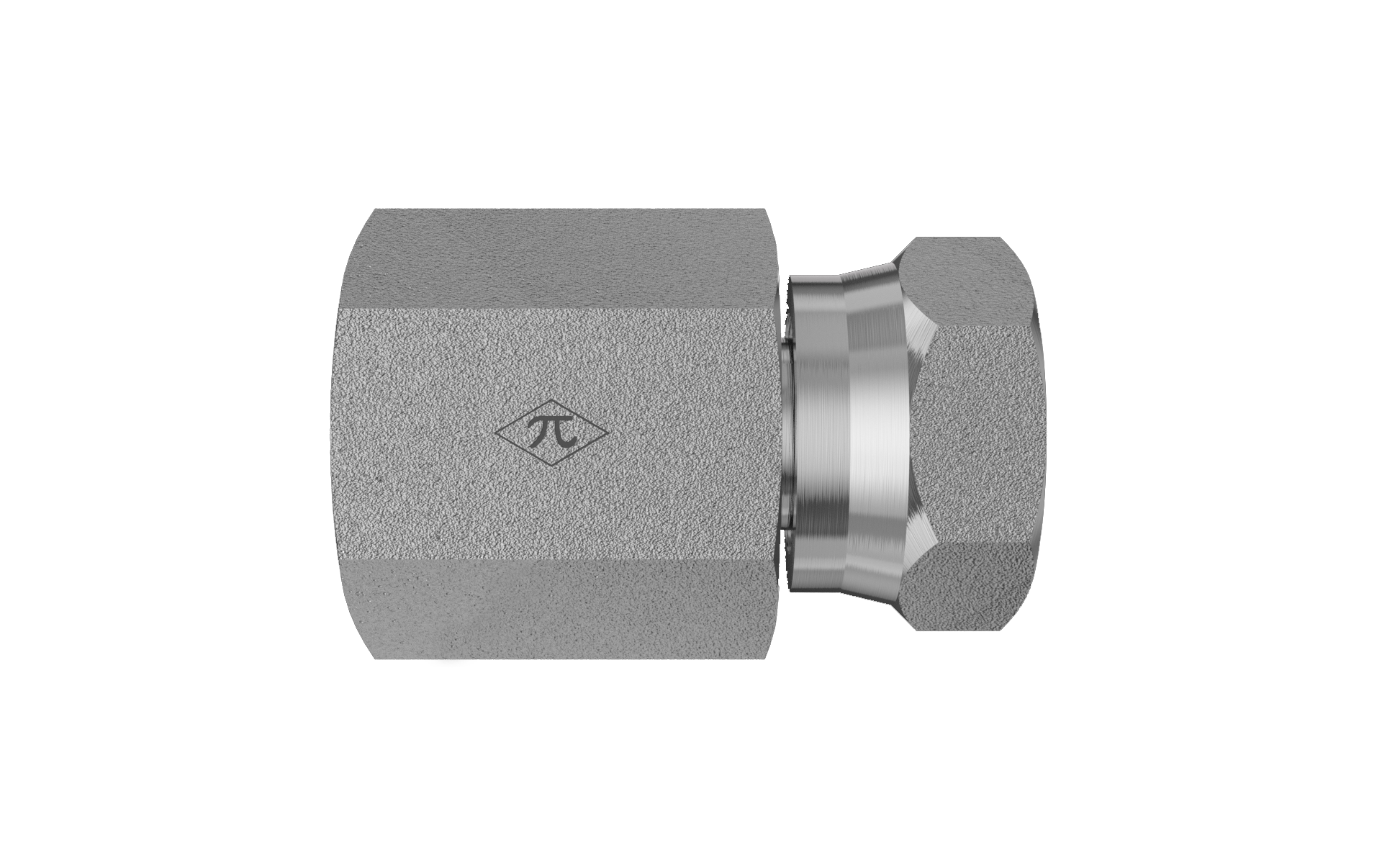

1" Female NPTF x 1" Female NPSM Swivel

1405-16-16-SS is a 1" Female NPTF x 1" Female NPSM Swivel in the 1405 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Female Swivel Connector
  • None
$62.04
(0) Write a Review
SKU:
1405-16-16-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Connector
Weight0.63 lb
PlatingNone
Cross References
Aeroquip259-2046-16-16
Parker0207-16-16-SS
SAE Ref.SAE J514 16-16 140131S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
