HGW HYDRAULICS

1405-16-16

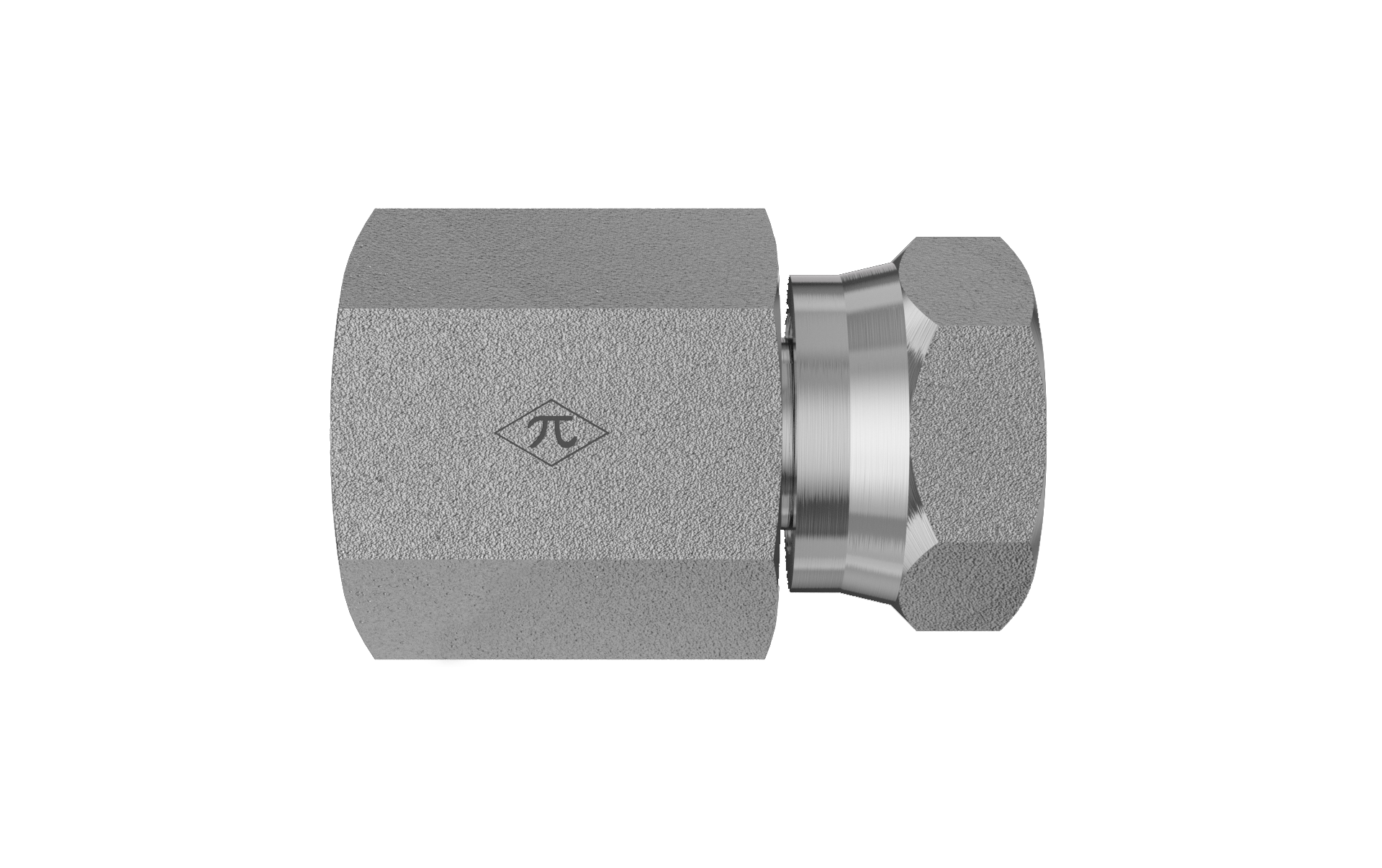

1" Female NPTF × 1" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-16-16 is a female swivel connector joining 1" female NPTF to 1" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$7.60
(0) Write a Review
SKU:
1405-16-16

Product Details

Connection A
TypeFemale NPTF
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.60 lb
Cross References
Aeroquip2046-16-16S
Parker0207-16-16
SAE Ref.SAE J514 16-16 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
