HGW HYDRAULICS

1405-20-20

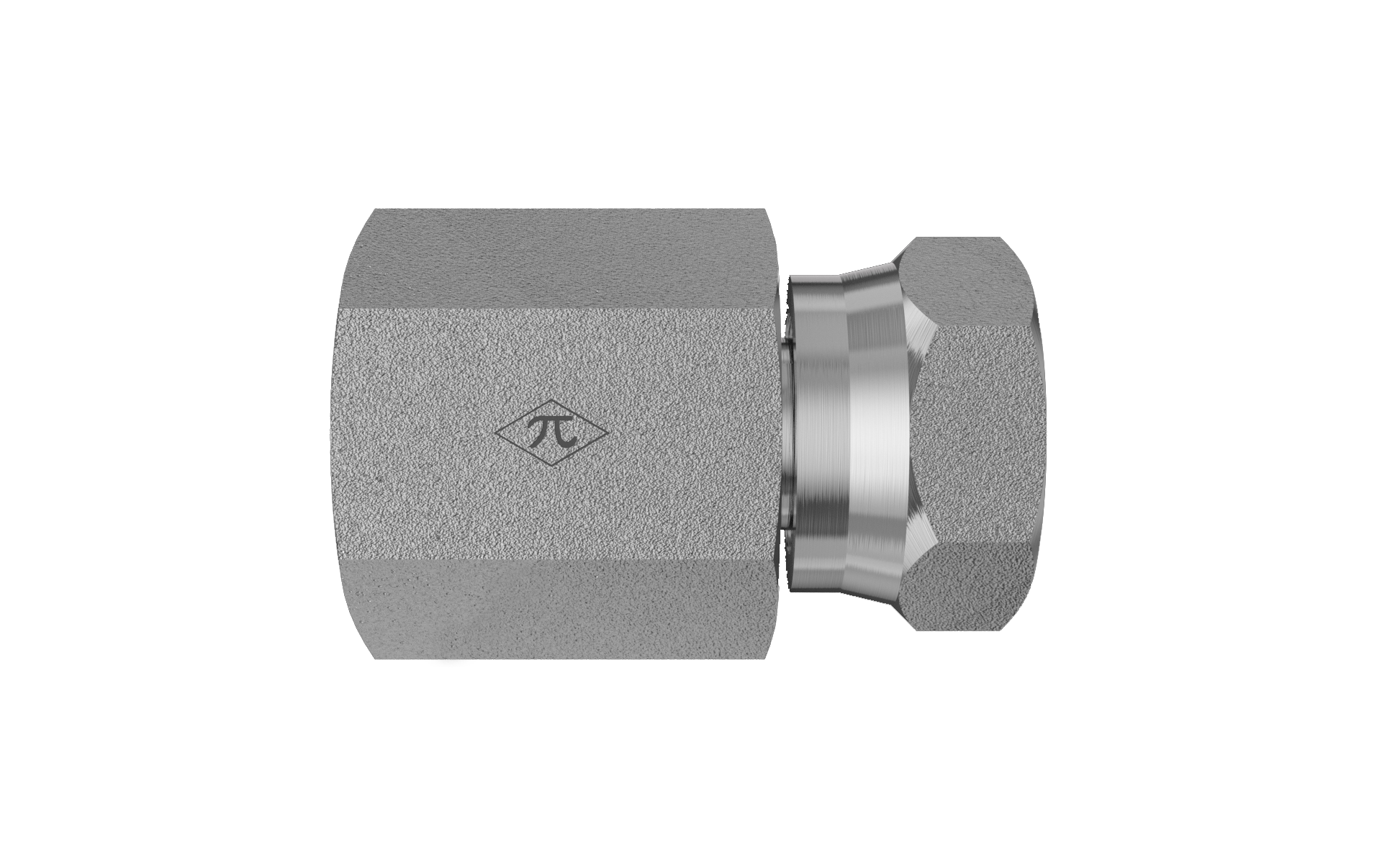

1-1/4" Female NPTF × 1-1/4" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-20-20 is a female swivel connector joining 1-1/4" female NPTF to 1-1/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$12.27
(0) Write a Review
SKU:
1405-20-20

Product Details

Connection A
TypeFemale NPTF
Pipe Size1-1/4"
StandardSAE J476
Thread Type1-1/4-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J514
Thread Type1-1/4-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight0.88 lb
Cross References
Aeroquip2046-20-20S
Parker0207-20-20
SAE Ref.SAE J514 20-20 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
