HGW HYDRAULICS

1405-24-20-SS

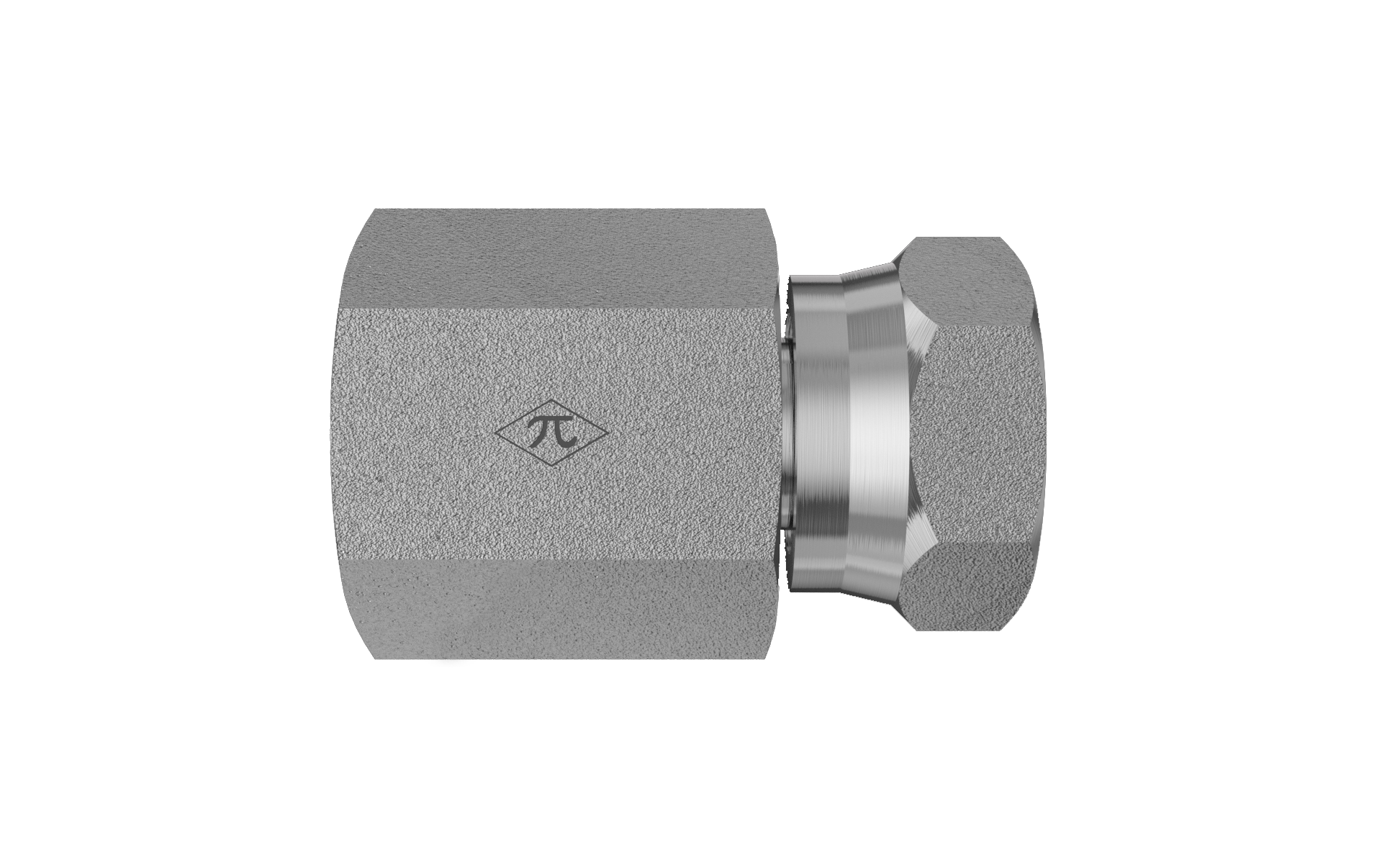

1-1/2" Female NPTF × 1-1/4" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-24-20-SS is a female swivel connector joining 1-1/2" female NPTF to 1-1/4" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Swivel Connector
$913.75
(0) Write a Review
SKU:
1405-24-20-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J514
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Connector
Weight1.03 lb
Cross References
Aeroquip259-2046-20-24
Parker0207-24-20-SS
SAE Ref.SAE J514 20-24 140131S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
