HGW HYDRAULICS

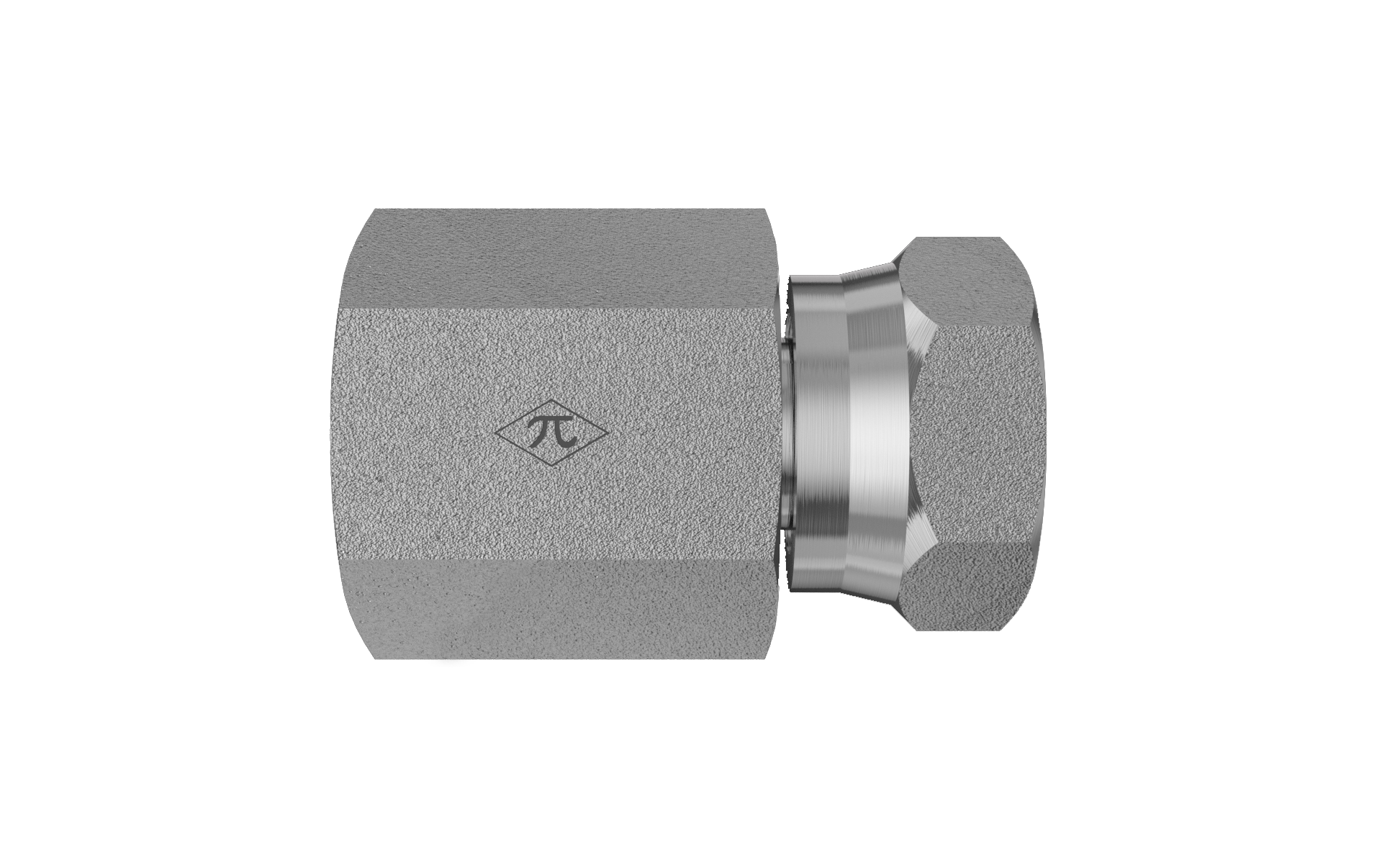

1405-24-24-SS

1-1/2" Female NPTF x 1-1/2" Female NPSM Swivel

1405-24-24-SS is a 1-1/2" Female NPTF x 1-1/2" Female NPSM Swivel in the 1405 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Female Swivel Connector
  • None
$128.06
(0) Write a Review
SKU:
1405-24-24-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J514
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Connector
Weight1.17 lb
PlatingNone
Cross References
Aeroquip259-2046-24-24
Parker0207-24-24-SS
SAE Ref.SAE J514 24-24 140131S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
