HGW HYDRAULICS

1405-24-24

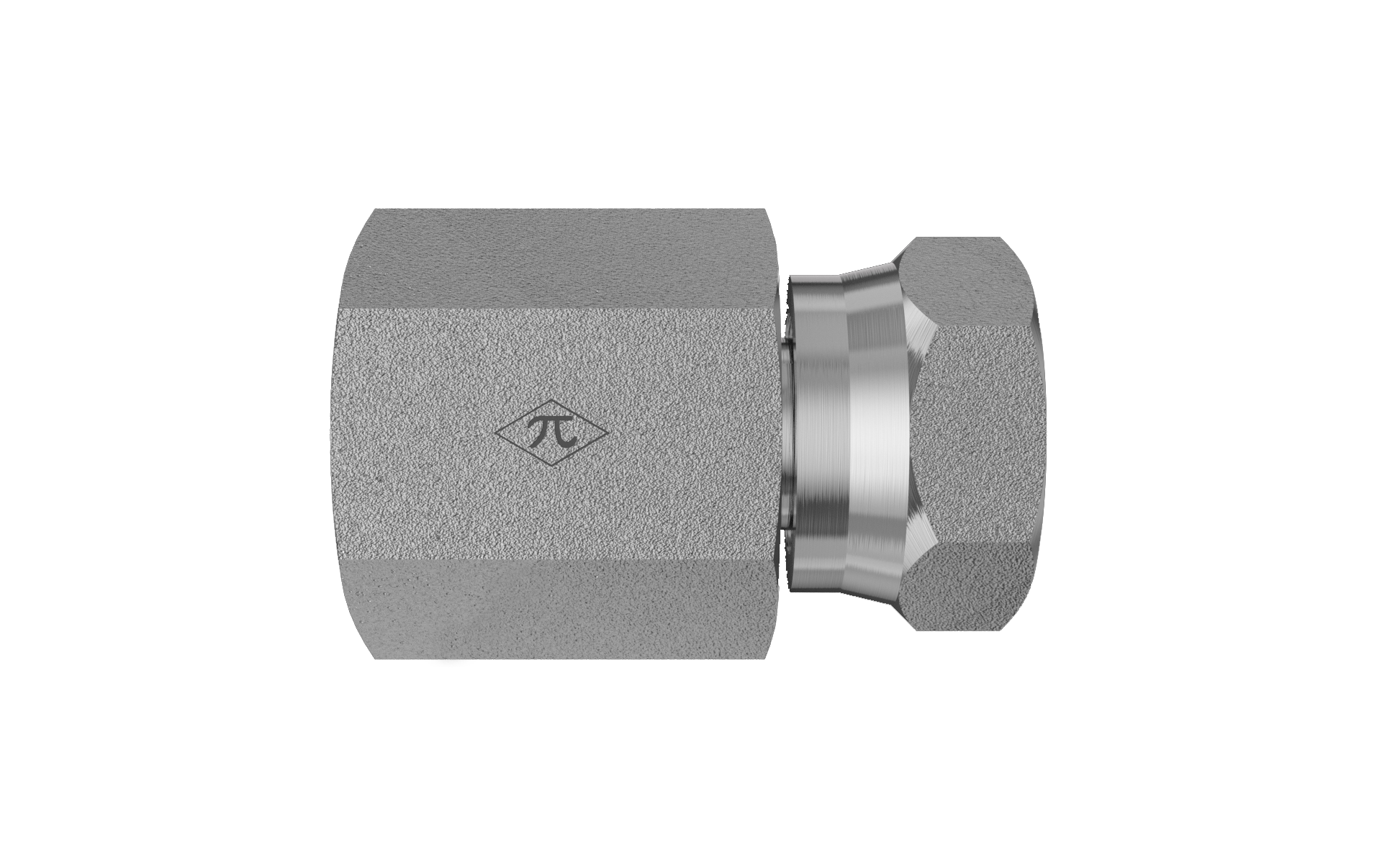

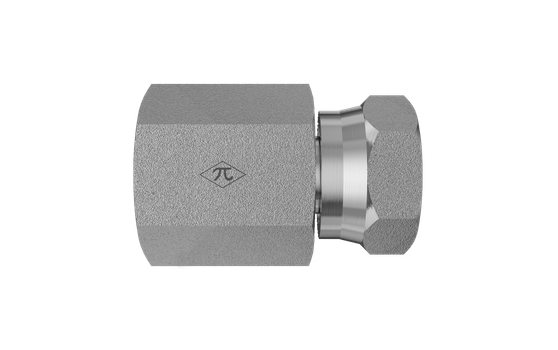

1-1/2" Female NPTF × 1-1/2" Female NPSM Swivel · Female Swivel Connector

The HGW 1405-24-24 is a female swivel connector joining 1-1/2" female NPTF to 1-1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$13.71
(0) Write a Review
SKU:
1405-24-24

Product Details

Connection A
TypeFemale NPTF
Pipe Size1-1/2"
StandardSAE J476
Thread Type1-1/2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1-1/2"
StandardSAE J514
Thread Type1-1/2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight1.14 lb
Cross References
Aeroquip2046-24-24S
Parker0207-24-24
SAE Ref.SAE J514 24-24 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
