HGW HYDRAULICS

1405-32-32

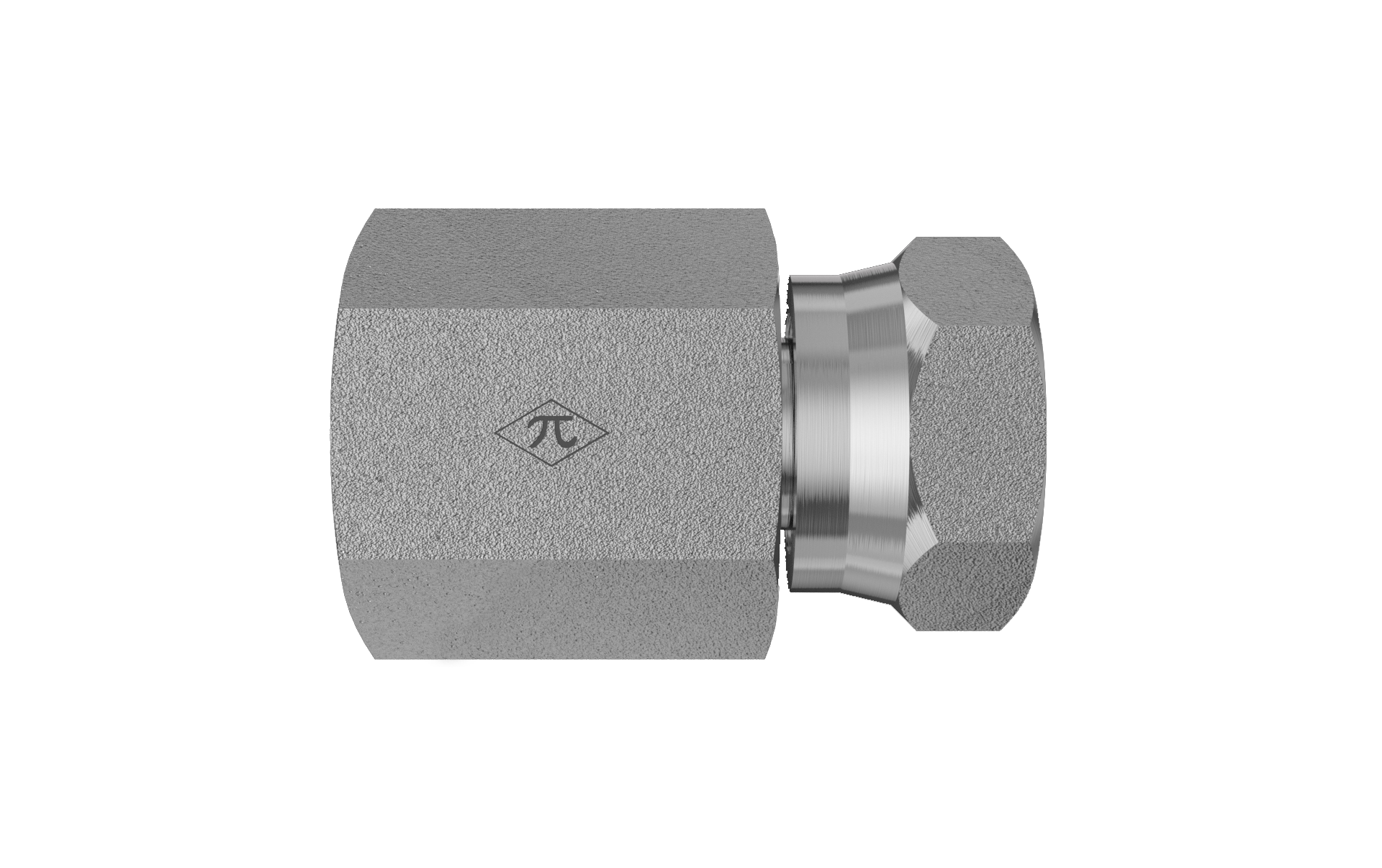

2" Female NPTF x 2" Female NPSM Swivel

1405-32-32 is a 2" Female NPTF x 2" Female NPSM Swivel in the 1405 Series. For connecting pipe to an NPSM straight-thread using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$25.92
(0) Write a Review
SKU:
1405-32-32

Product Details

Connection A
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread Type2-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size2"
StandardSAE J514
Thread Type2-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Connector
Weight1.71 lb
Cross References
Aeroquip2046-32-32S
Parker0207-32-32
SAE Ref.SAE J514 32-32 140131C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
