HGW HYDRAULICS

1501-06-12-FG

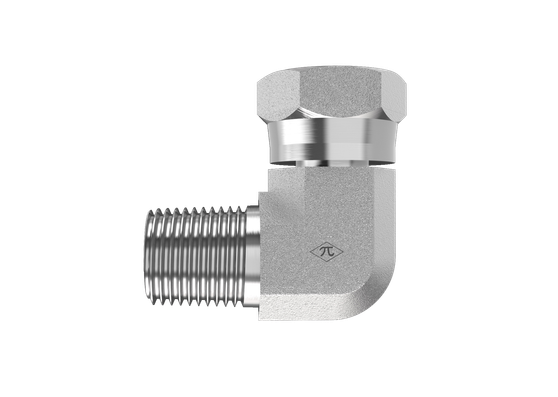

3/8" Male NPTF 30° x 3/4" Female NPSM Swivel

1501-06-12-FG is a 3/8" Male NPTF 30° x 3/4" Female NPSM Swivel in the 1501-FG Series. For connecting pipe to an NPSM straight-thread at a 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$40.44
(0) Write a Review
SKU:
1501-06-12-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/4"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight0.48 lb
Cross References
Aeroquip2047-12-6S
Parker2107-6-12
SAE Ref.SAE J514 12-6 140230C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
