HGW HYDRAULICS

1501-16-16-SS

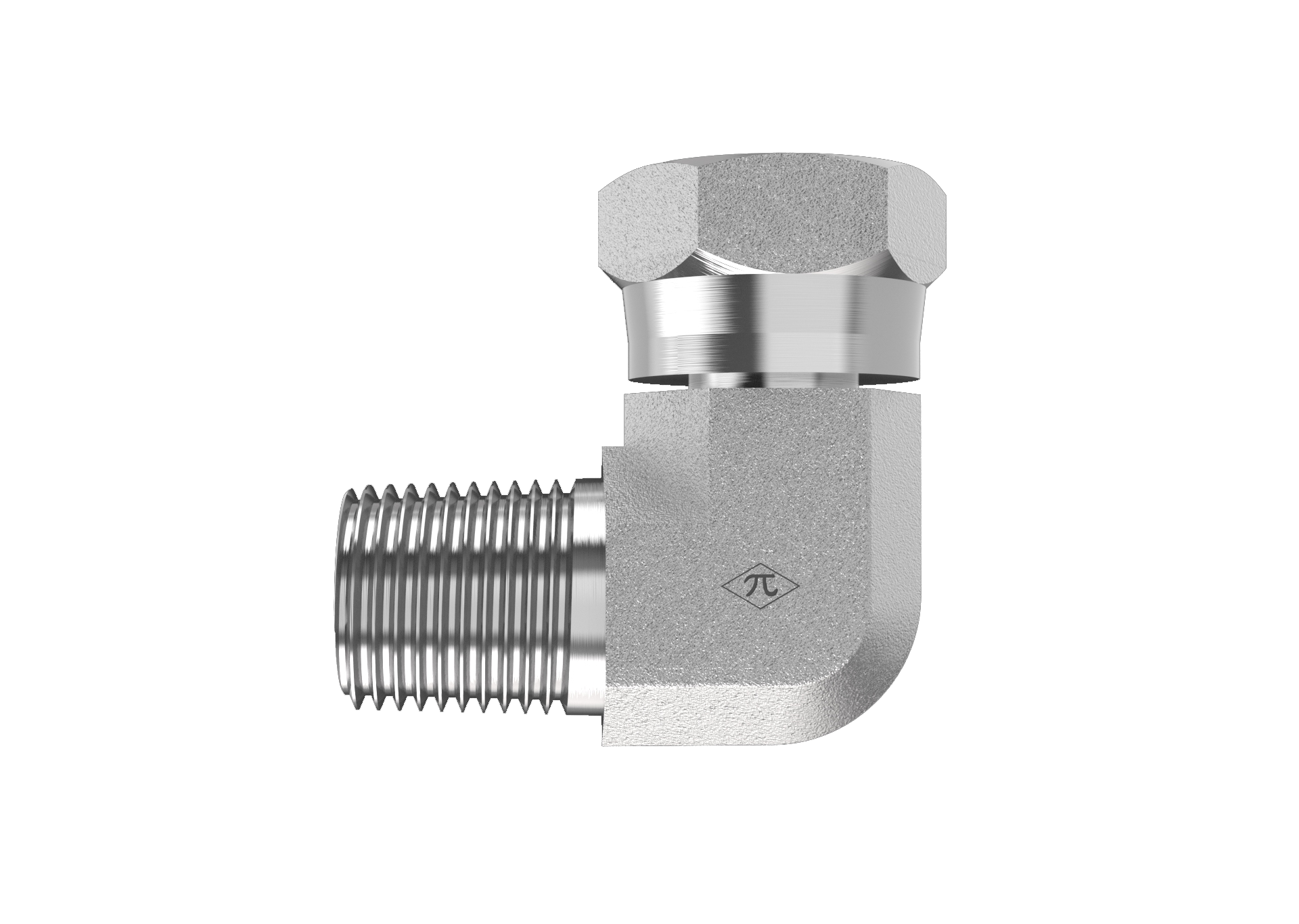

1" Male NPTF 30° x 1" Female NPSM Swivel

1501-16-16-SS is a 1" Male NPTF 30° x 1" Female NPSM Swivel in the 1501-FG Series. For connecting pipe to an NPSM straight-thread at a 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Stainless Steel
  • Male Swivel Elbow
  • None
$91.86
(0) Write a Review
SKU:
1501-16-16-SS

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeMale Swivel Elbow
Weight0.82 lb
PlatingNone
Cross References
Aeroquip259-2047-16-16
Parker2107-16-16-SS
SAE Ref.SAE J514 16-16 140230S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
