HGW HYDRAULICS

1501-16-20-FG

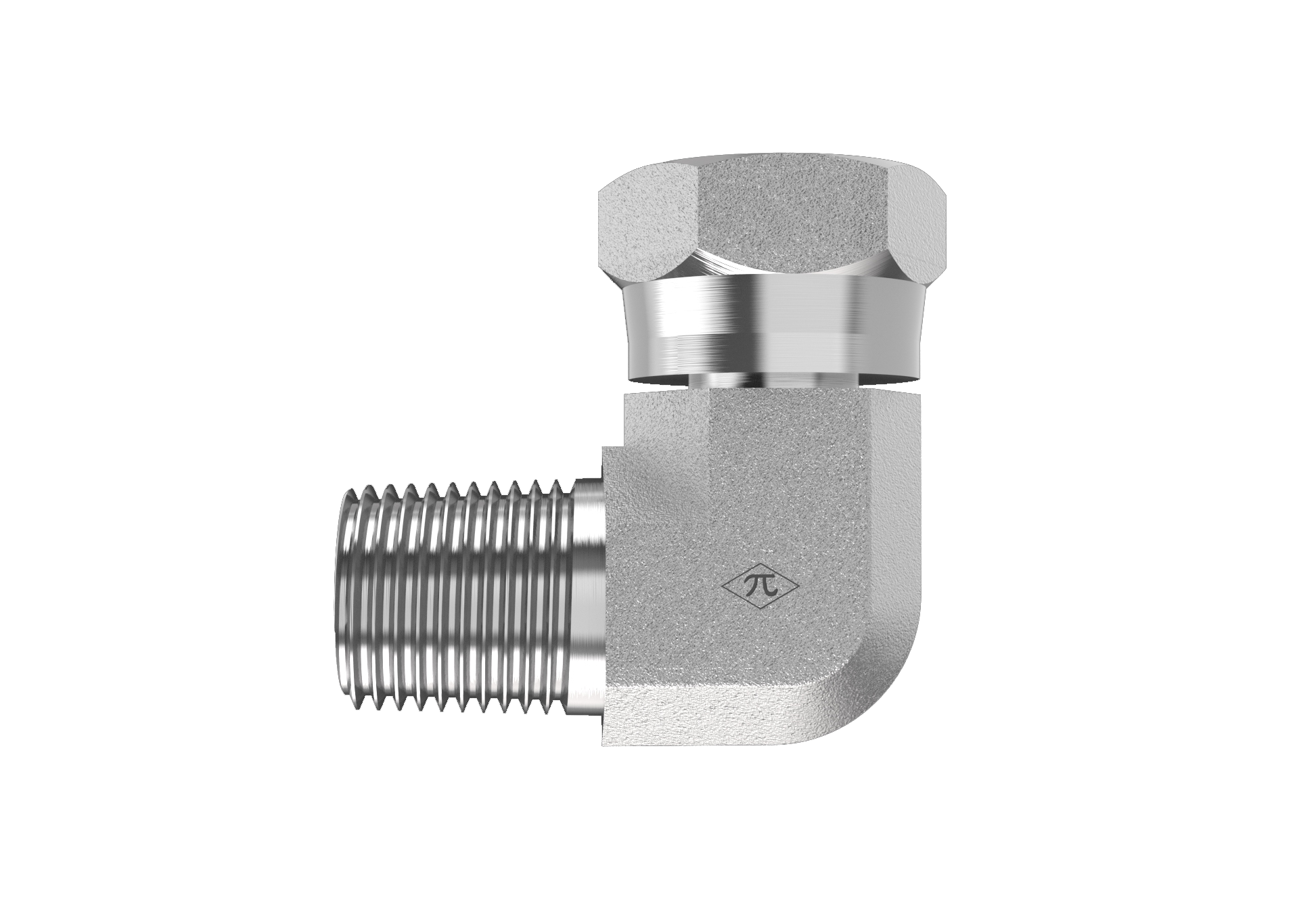

1" Male NPTF 30° x 1-1/4" Female NPSM Swivel

1501-16-20-FG is a 1" Male NPTF 30° x 1-1/4" Female NPSM Swivel in the 1501-FG Series. For connecting pipe to an NPSM straight-thread at a 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$22.02
(0) Write a Review
SKU:
1501-16-20-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1"
StandardSAE J476
Thread Type1-11-1/2 NPTF
Connection B
TypeFemale NPSM Swivel
Size1-1/4"
StandardSAE J514
Thread Type1-11-1/2 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight1.47 lb
Cross References
Aeroquip2047-20-16S
Parker2107-16-20
SAE Ref.SAE J514 20-16 140230C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
