HGW HYDRAULICS

1501-L-06-06-FG

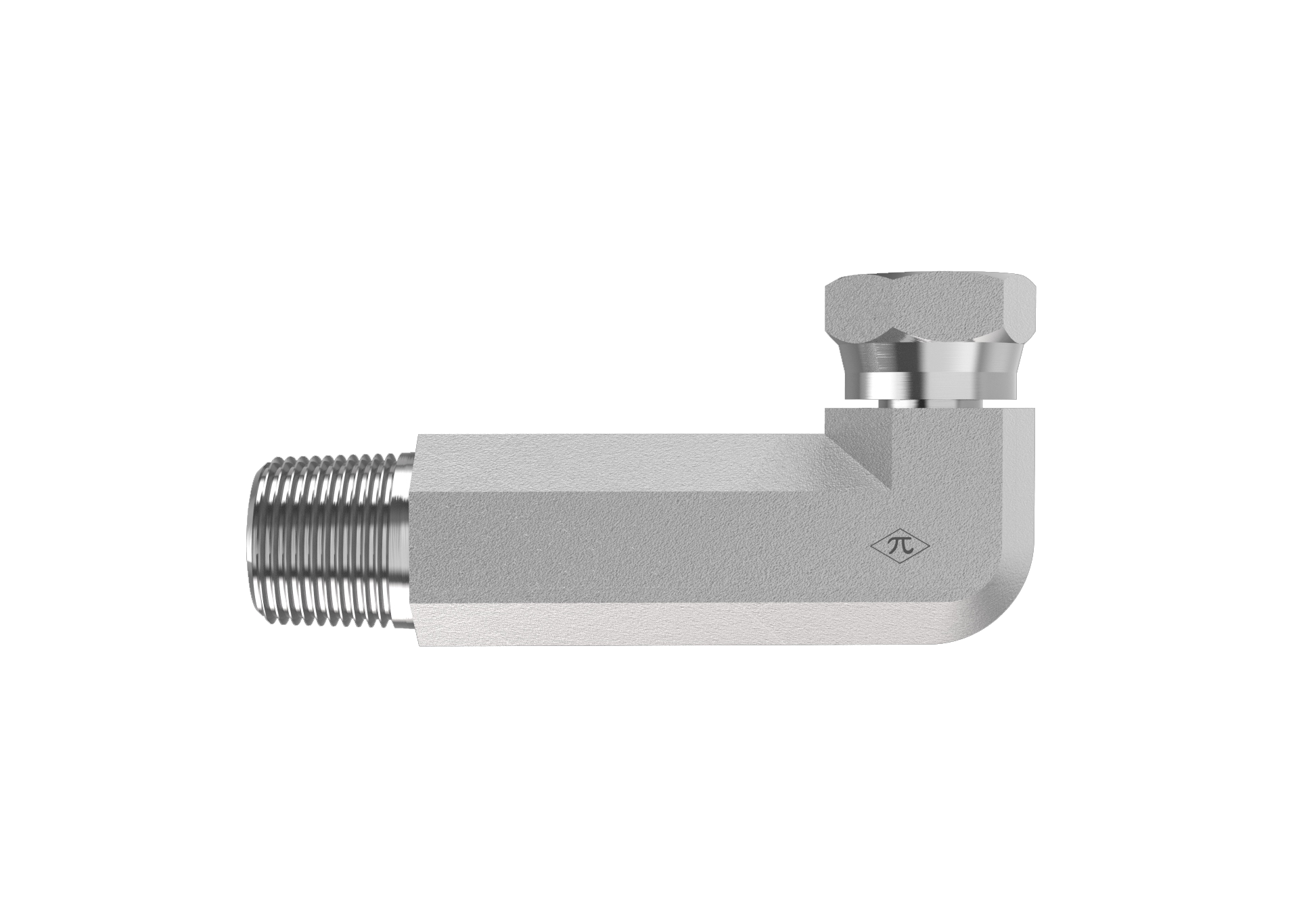

3/8" Male NPTF 30° x 3/8" Female NPSM Swivel

1501-L-06-06-FG is a 3/8" Male NPTF 30° x 3/8" Female NPSM Swivel in the 1501-L-FG Series. For connecting pipe to an NPSM straight-thread at a long 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$9.70
(0) Write a Review
SKU:
1501-L-06-06-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight0.35 lb
Cross References
AeroquipFF4175-0606S
Parker5607-6-6

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
