HGW HYDRAULICS

1501-L-08-08-FG

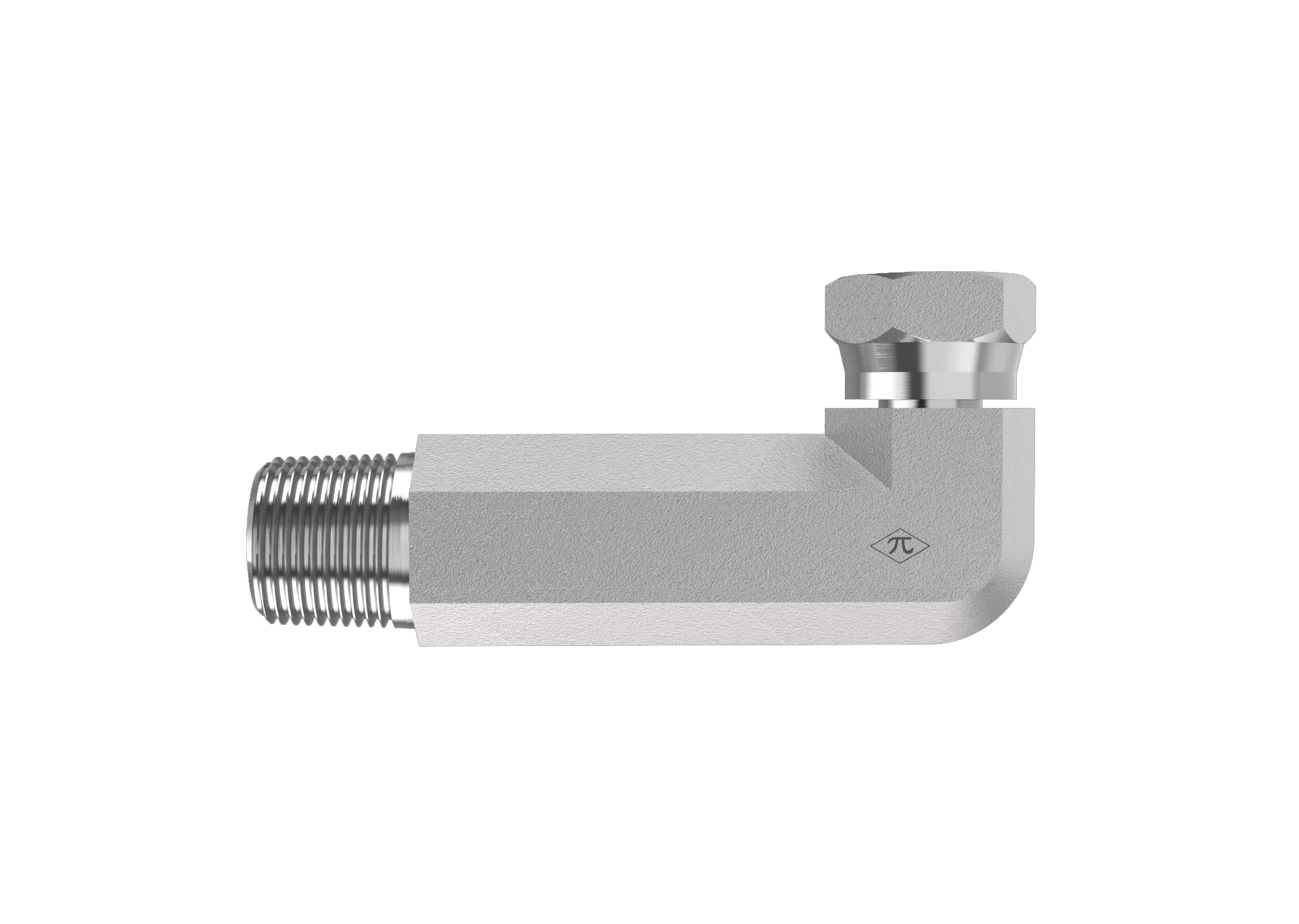

1/2" Male NPTF 30° x 1/2" Female NPSM Swivel

1501-L-08-08-FG is a 1/2" Male NPTF 30° x 1/2" Female NPSM Swivel in the 1501-L-FG Series. For connecting pipe to an NPSM straight-thread at a long 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Swivel Elbow
$12.31
(0) Write a Review
SKU:
1501-L-08-08-FG

Product Details

Connection A
TypeMale NPTF 30°
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swivel Elbow
Weight0.53 lb
Cross References
AeroquipFF4175-0808S
Parker5607-8-8

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
