HGW HYDRAULICS

1502-02-04

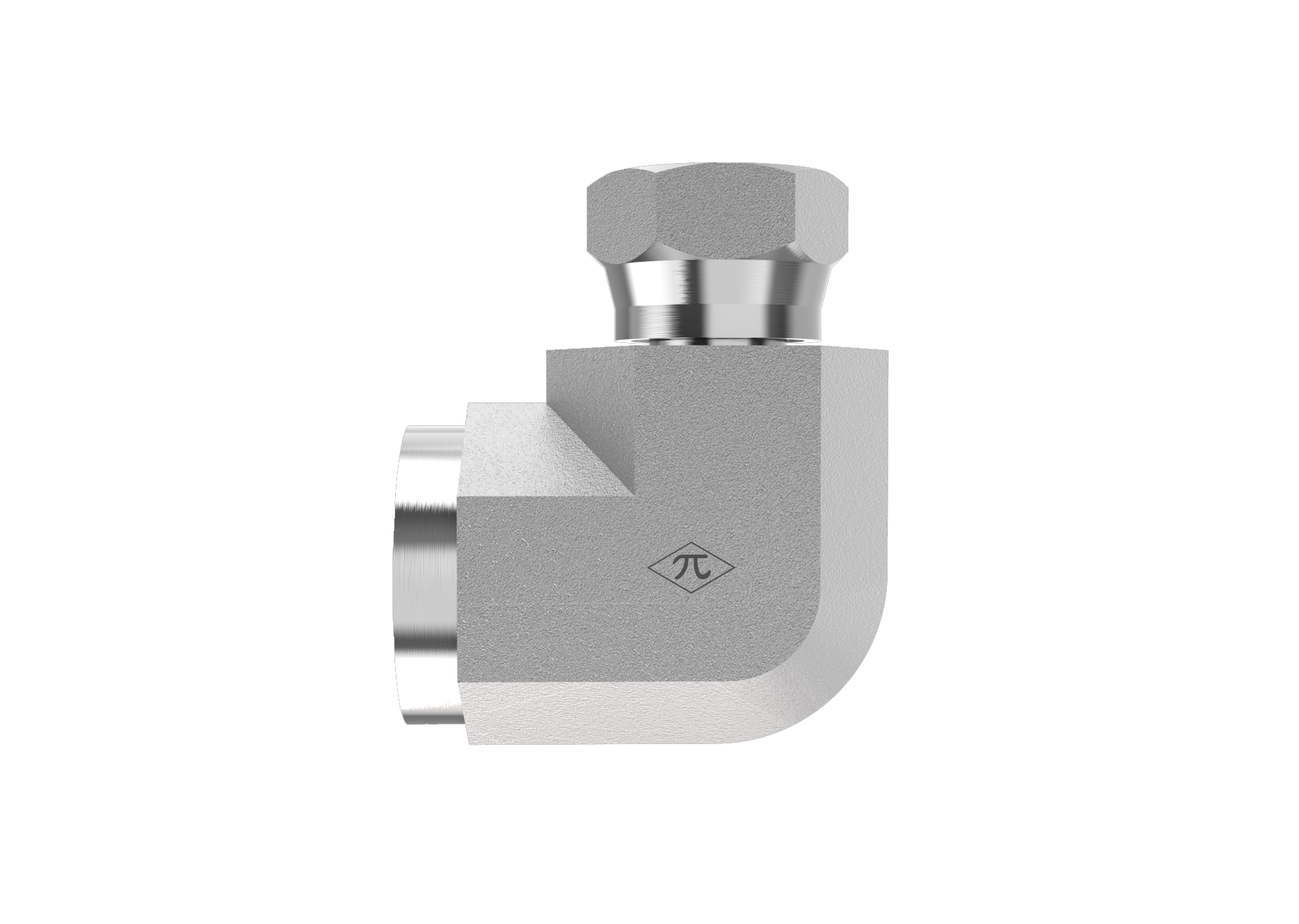

1/8" Female NPTF × 1/4" Female NPSM Swivel · Female Swivel Elbow

The HGW 1502-02-04-FG is a female swivel elbow joining 1/8" female NPTF to 1/4" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Elbow
$23.47
(0) Write a Review
SKU:
1502-02-04

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/8"
StandardSAE J476
Thread Type1/8-27 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/4"
StandardSAE J514
Thread Type1/8-27 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Elbow
Weight0.10 lb
Cross References
Aeroquip2048-4-2S
Parker2207-2-4
SAE Ref.SAE J514 4-2 140231C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
