1502-04-02-FG

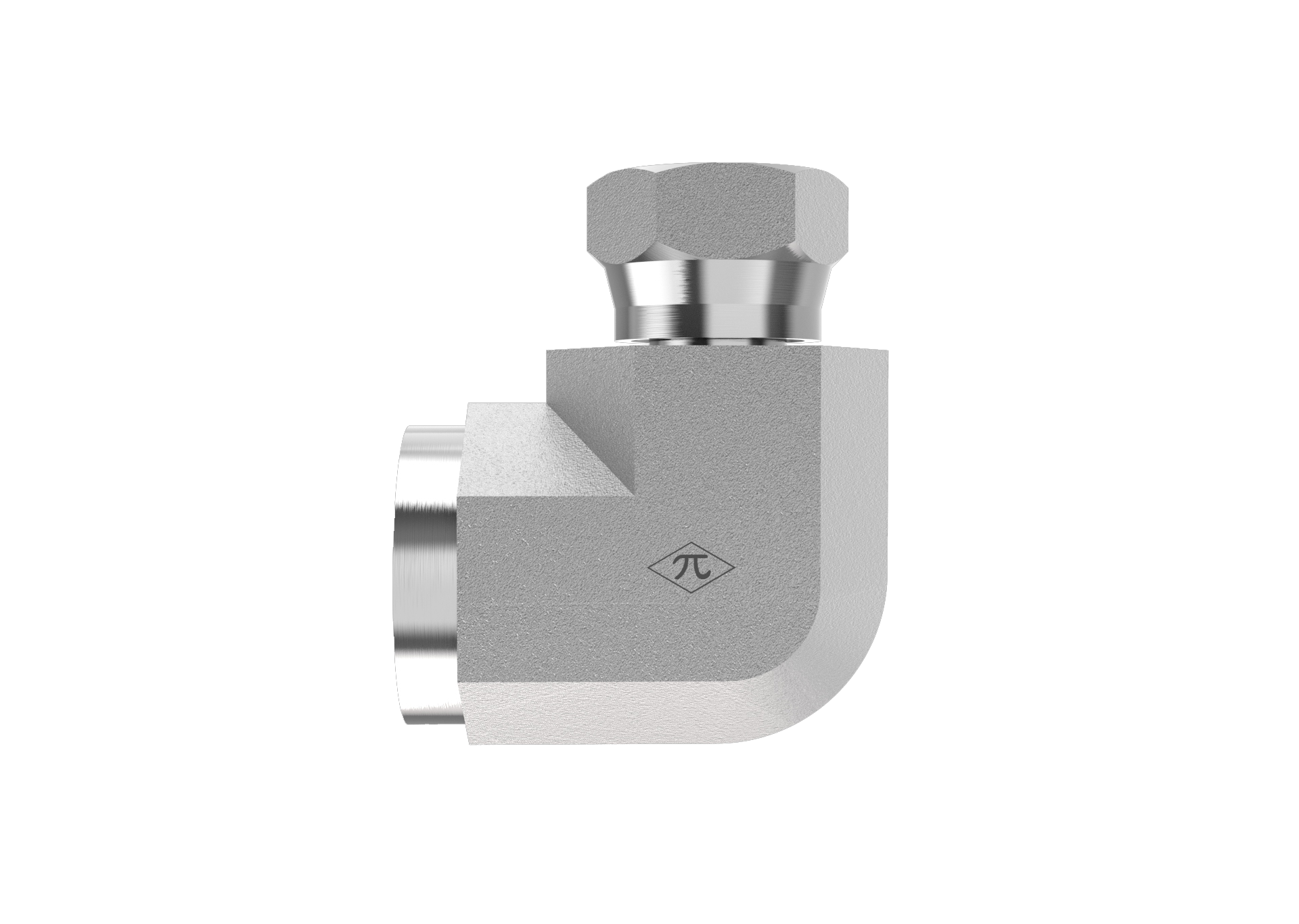

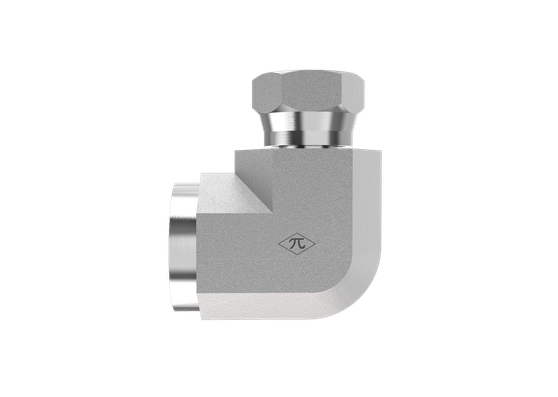

1/4" Female NPTF x 1/8" Female NPSM Swivel

1502-04-02-FG is a 1/4" Female NPTF x 1/8" Female NPSM Swivel in the 1502-FG Series. For connecting pipe to an NPSM straight-thread at a 90° angle using a swivel for alignment and without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Female Swivel Elbow
$11.22
(0) Write a Review
SKU:
1502-04-02-FG

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/8"
StandardSAE J514
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Elbow
Weight0.14 lb
Cross References
Aeroquip2048-2-4S
Parker2207-4-2
SAE Ref.SAE J514 2-4 140231C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
