HGW HYDRAULICS

1502-04-06-SS

1/4" Female NPTF × 3/8" Female NPSM Swivel · Female Swivel Elbow

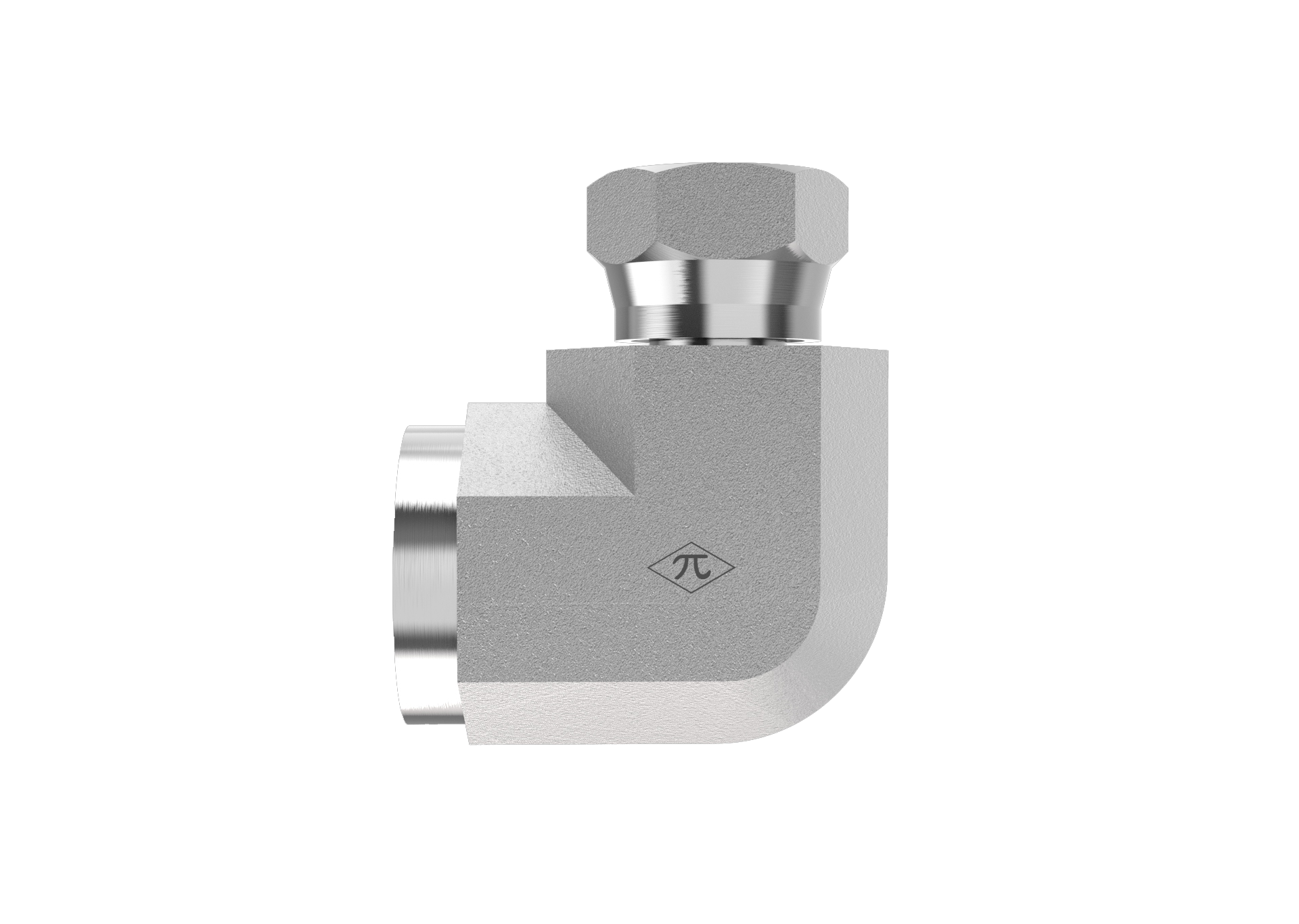

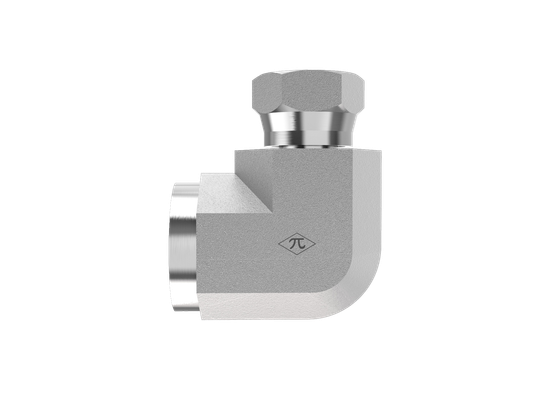

The HGW 1502-04-06-SS is a female swivel elbow joining 1/4" female NPTF to 3/8" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Swivel Elbow
$107.16
(0) Write a Review
SKU:
1502-04-06-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/4"
StandardSAE J476
Thread Type1/4-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size3/8"
StandardSAE J514
Thread Type1/4-18 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Elbow
Weight0.21 lb
Cross References
Aeroquip259-2048-6-4
Parker2207-4-6-SS
SAE Ref.SAE J514 6-4 140231S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
