HGW HYDRAULICS

1502-06-08-SS

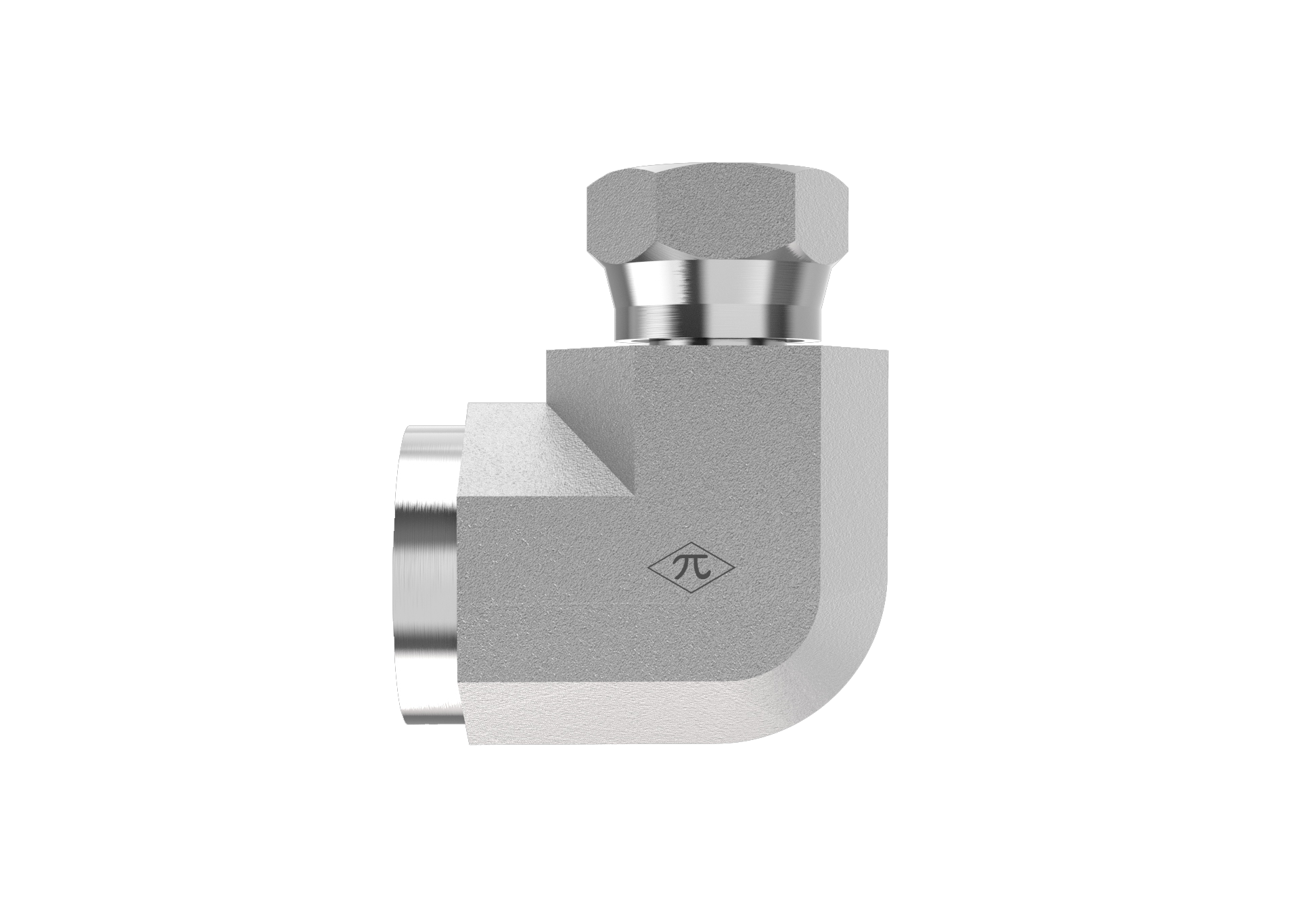

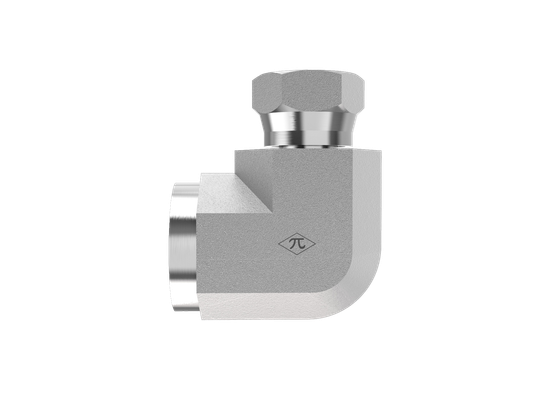

3/8" Female NPTF × 1/2" Female NPSM Swivel · Female Swivel Elbow

The HGW 1502-06-08-SS is a female swivel elbow joining 3/8" female NPTF to 1/2" female NPSM swivel. Made from stainless steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Female Swivel Elbow
$42.61
(0) Write a Review
SKU:
1502-06-08-SS

Product Details

Connection A
TypeFemale NPTF
Pipe Size3/8"
StandardSAE J476
Thread Type3/8-18 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type3/8-18 NPTF
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeFemale Swivel Elbow
Weight0.30 lb
Cross References
Aeroquip259-2048-8-6
Parker2207-6-8-SS
SAE Ref.SAE J514 8-6 140231S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
