HGW HYDRAULICS

1502-08-08

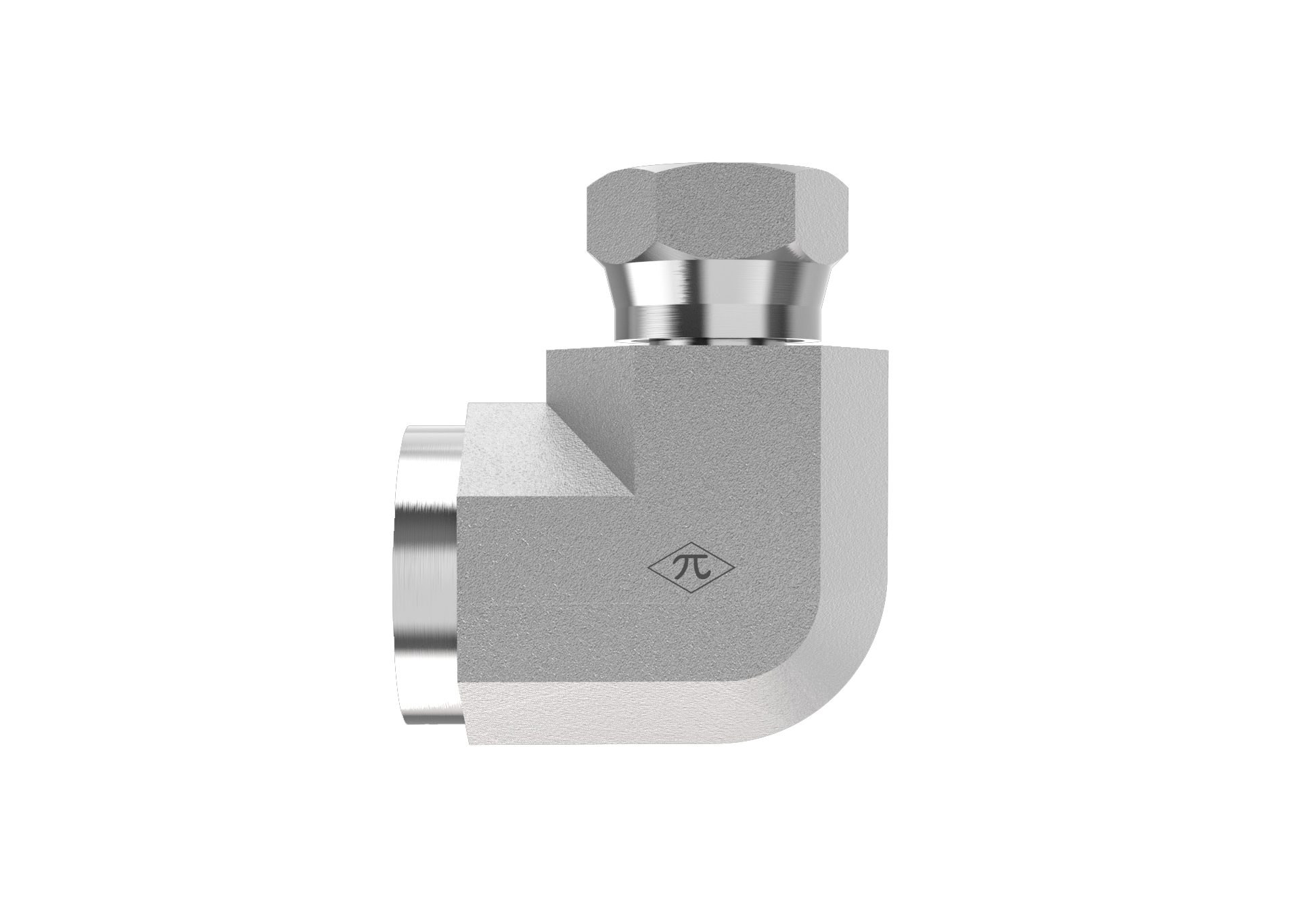

1/2" Female NPTF × 1/2" Female NPSM Swivel · Female Swivel Elbow

The HGW 1502-08-08-FG is a female swivel elbow joining 1/2" female NPTF to 1/2" female NPSM swivel. Made from trivalent-zinc-plated steel, it uses SAE J476 and SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Female Swivel Elbow
$6.93
(0) Write a Review
SKU:
1502-08-08

Product Details

Connection A
TypeFemale NPTF
Pipe Size1/2"
StandardSAE J476
Thread Type1/2-14 NPTF
Connection B
TypeFemale NPSM Swivel
Size1/2"
StandardSAE J514
Thread Type1/2-14 NPTF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeFemale Swivel Elbow
Weight0.43 lb
Cross References
Aeroquip2048-8-8S
Parker2207-8-8
SAE Ref.SAE J514 8-8 140231C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
